Monitor GDS Data

Connect GDS to Data Link Connector (DLC).
IG "ON".
Select "Diagnostic Trouble Codes (DTC) " button, Press "DTC Status" to check DTC's information from the DTCs menu.
Read "DTC Status" parameter.

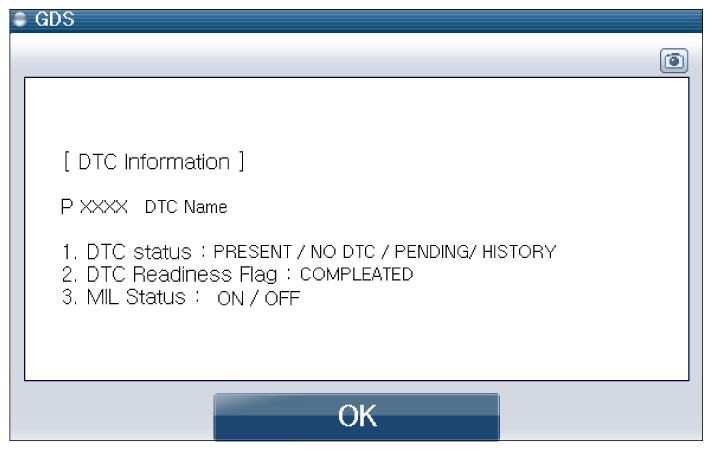

Fig 1: Screen Display - DTC Status Parameter
Courtesy of KIA MOTORS AMERICA, INC.
Record all DTC's, DTC status and freeze frame data. Does DTC Status indicate "Present"?
YES
- Go to next procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
