Monitor GDS Data

Connect GDS to Data Link Connector (DLC).
IG "ON".
Select "Diagnostic Trouble Codes (DTC) " button, Press "DTC Status" to check DTC's information from the DTCs menu.
Read "DTC Status" parameter.

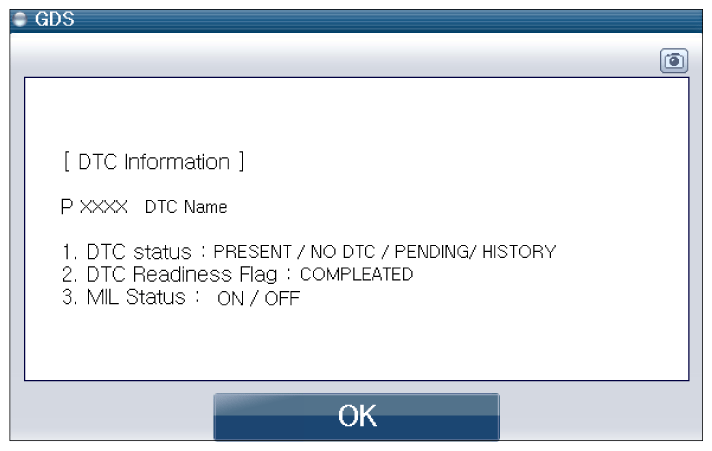

Fig 1: Screen Display - DTC Status Parameter
Courtesy of KIA MOTORS AMERICA, INC.
Record all DTC's, DTC status and freeze frame data. Does DTC Status indicate "Present"?
YES
- Go to next procedure.
NO
- Clear DTC and check if this DTC is set after test-driving under enable conditions. If DTC isn't displayed after the test, it was intermittent fault. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
