Chart 1

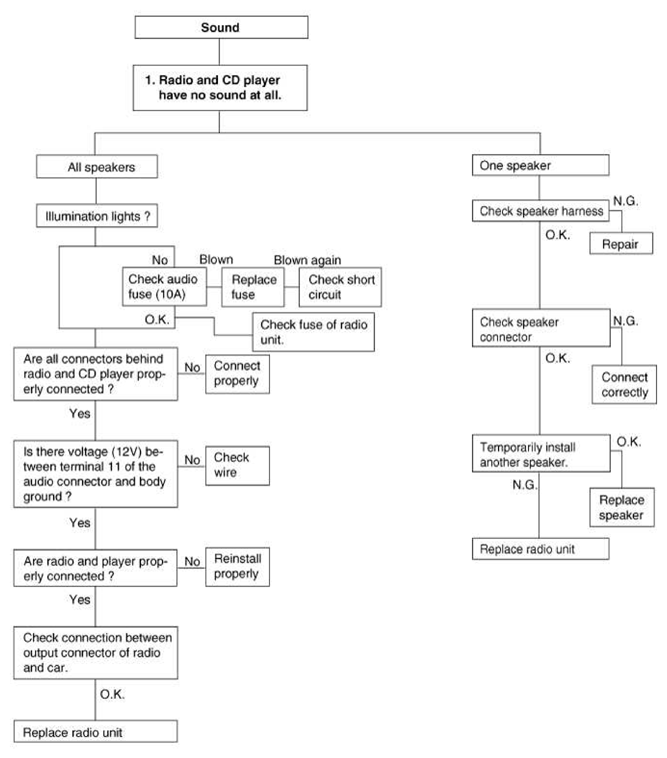

Fig 1: CD Player - Troubleshooting Flowchart (1 Of 2)
G11792010Courtesy of KIA MOTORS AMERICA, INC.

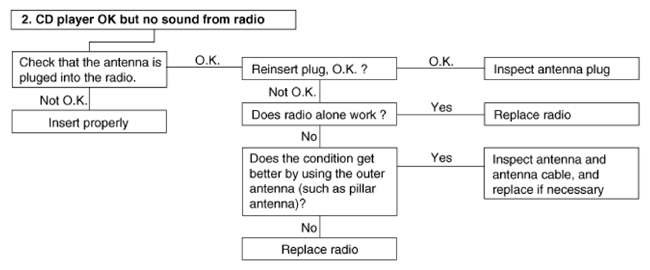

Fig 2: CD Player - Troubleshooting Flowchart (2 Of 2)
G11792011Courtesy of KIA MOTORS AMERICA, INC.
