Chart 4

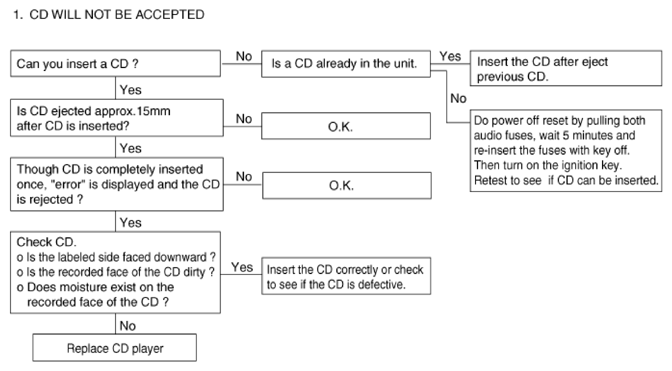

Fig 1: CD Player - Troubleshooting Flowchart (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

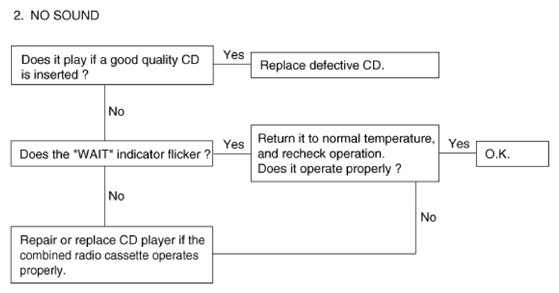

Fig 2: CD Player - Troubleshooting Flowchart (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

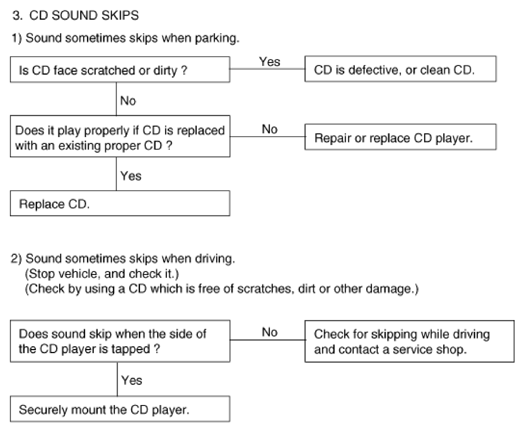

Fig 3: CD Player - Troubleshooting Flowchart (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

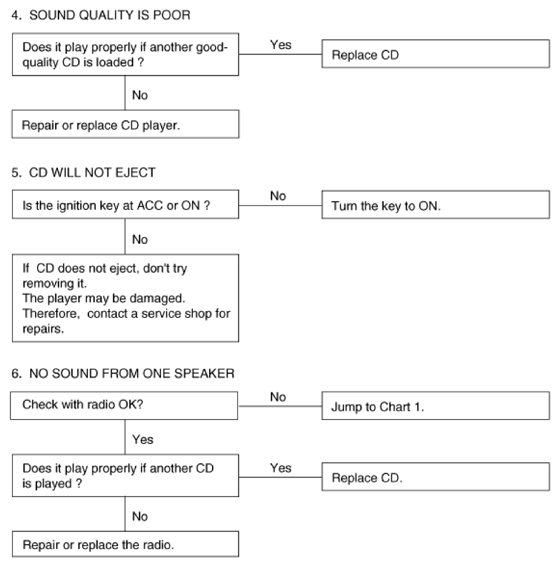

Fig 4: CD Player - Troubleshooting Flowchart (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
