Repair Procedures: Inspection

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
1. Power seat control switch
2. Lumbar support switch
Fig 1: Power Seat Control And Lumbar Support Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

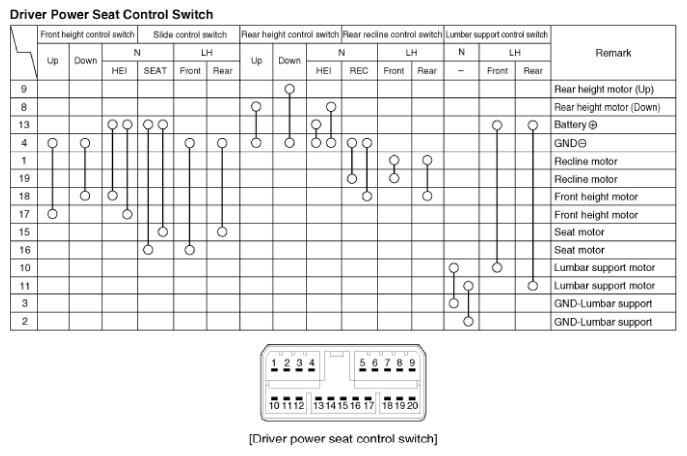

Fig 2: Drive Power Seat Control Switch Chart
Courtesy of KIA MOTORS AMERICA, INC.

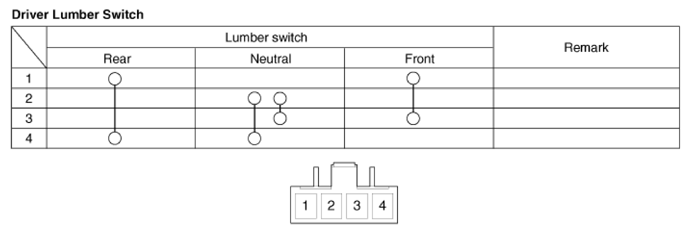

Fig 3: Drive Lumber Switch Continuity Reference Chart
Courtesy of KIA MOTORS AMERICA, INC.
