Repair Procedures: Inspection

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
1. Power seat control switch
2. Lumbar support switch
Fig 1: Power Seat Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

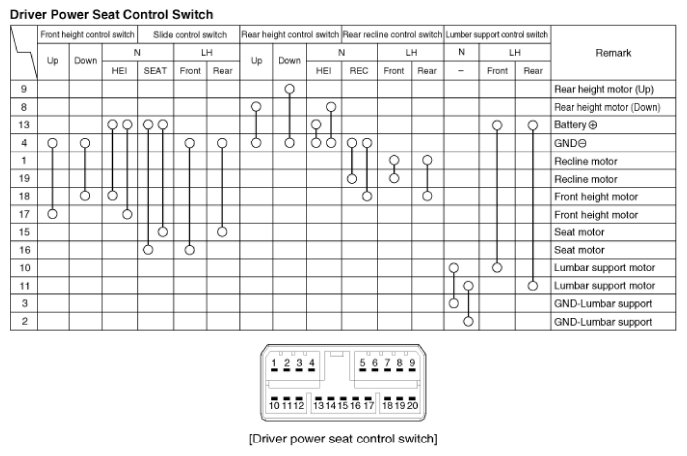

Fig 2: Driver Power Seat Control Switch
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Driver Lumber Switch Continuity Reference Chart
Courtesy of KIA MOTORS AMERICA, INC.
