Components And Components Location: Components

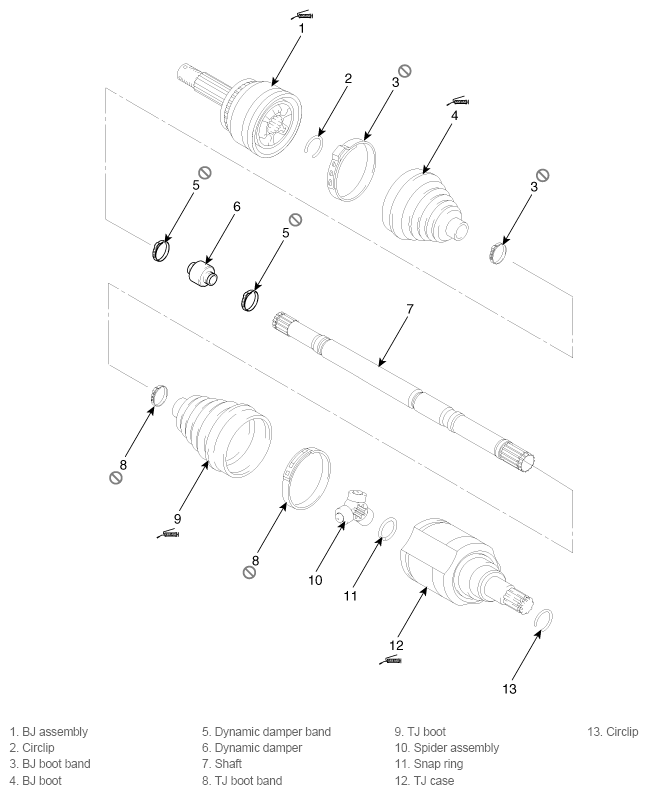

Fig 1: Exploded View Of Dynamic Damper

G11795388

Courtesy of KIA MOTORS AMERICA, INC.
