Components And Components Location: Components

[LH]

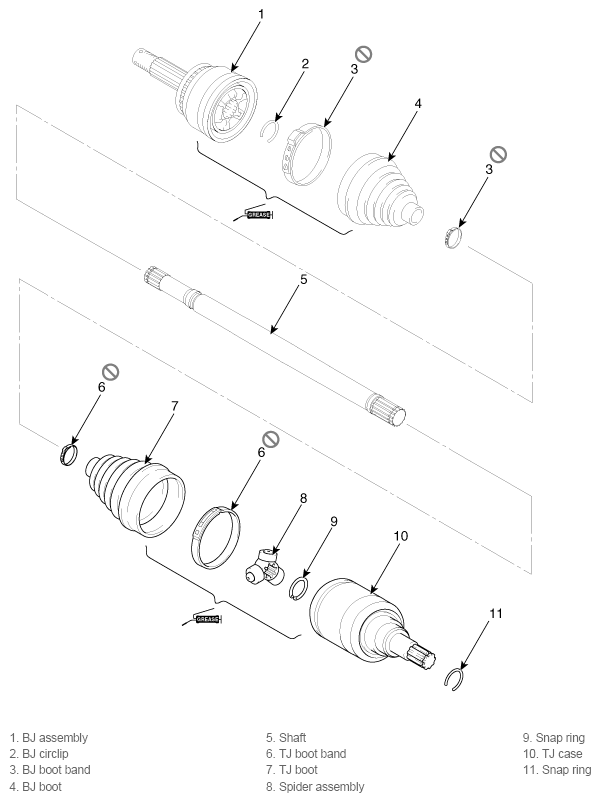

Fig 1: Exploded View Of TJ Joint (LH)
G11795374Courtesy of KIA MOTORS AMERICA, INC.

[RH]

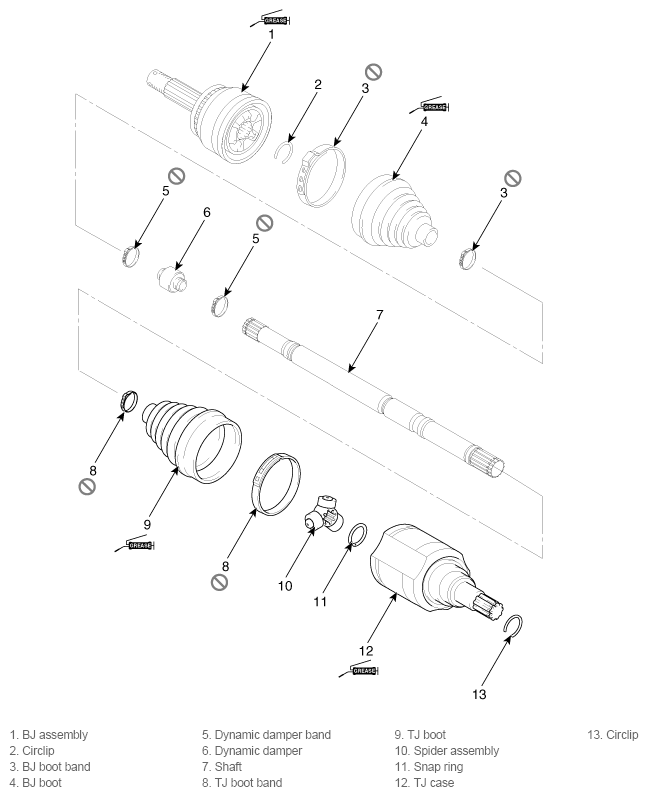

Fig 2: Exploded View Of TJ Joint (RH)
G11795375Courtesy of KIA MOTORS AMERICA, INC.
