Repair Procedures: Replacement

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Information

When removing or installing the front passenger seat, be sure to initialize the Weight Classification System (WCS)
(If initialization process is not performed, WCS may not be able to detect a person correctly.)

(Refer to "WEIGHT CLASSIFICATION SYSTEM (WCS) ")
When replacing the WCS, be sure to check the parts unit.
- Parts unit of WCS: seat track assembly

Remove the front seat track mounting cover.
After loosening the mounting bolts, remove the front seat assembly (A).
Tightening Torque:

34.3 ~ 53.9N.m (3.5 ~ 5.5kgf.m, 25.3 ~ 39.8lb-ft)

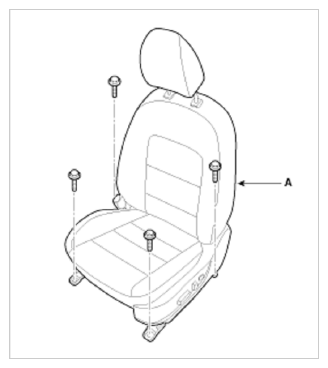

Fig 1: Front Seat Assembly Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the seat buckle connector (A), seat warmer & power seat connector (B), SAB connector (C), PODS connector (D).
[Driver's]

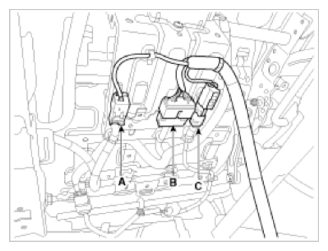

Fig 2: Seat Buckle, Seat Warmer, Power Seat, SAB & PODS Connectors (Driver's)
Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]

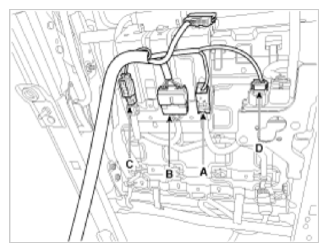

Fig 3: Seat Buckle, Seat Warmer, Power Seat, SAB & PODS Connectors (Passenger's)
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- SEAT MOUNTING BOLT INSTALLATION PROCEDURE
- Set the seat into the most rearward position. Check that each slide is locked, and then tighten the front mounting bolt temporarily.
- Set the seat into most forward position. Check that each slide is locked, and then Tighten the rear mounting bolt completely.
- Set the seat into the most rearward position. Check the front mounting bolt completely.
- Check that the seat operates to and fro smoothy and the locking portion locks properly.
