Repair Procedures: Replacement

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the engine room under cover front panel (A).

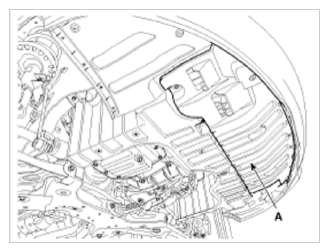

    Fig 1: Engine Room Under Cover Front Panel
    G09745144Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connector and then remove the ambient temperature sensor (A).

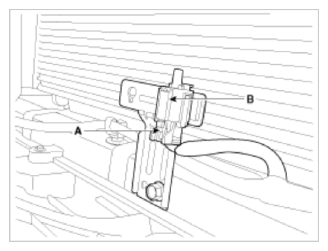

    Fig 2: Ambient Temperature Sensor
    G09745145Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
