Repair Procedures: Replacement

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the glove box housing.
(Refer to "GLOVE BOX HOUSING ")
Disconnect the cluster ionizer connector (A).
Remove the screws and then remove the cluster ionizer (B).

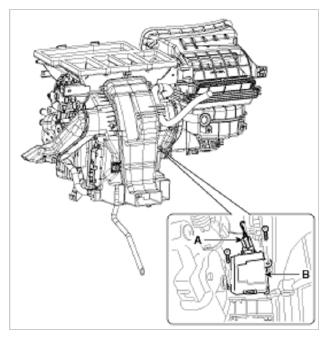

Fig 1: Cluster Ionizer Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
