Repair Procedures: Replacement

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant with a recovery/recycling/charging station.
Disconnect the negative (-) battery terminal.
Remove the front bumper cover.
(Refer to "FRONT BUMPER COVER ")

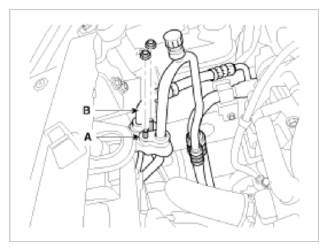

Remove the discharge line (A) and liquid line (B) from the condenser.
Tightening Torque:

7.8~11.7 N.m (0.8~1.2 kgf.m, 5.7~8.6 lb.ft)

Fig 1: Discharge & Liquid Line
Courtesy of KIA MOTORS AMERICA, INC.

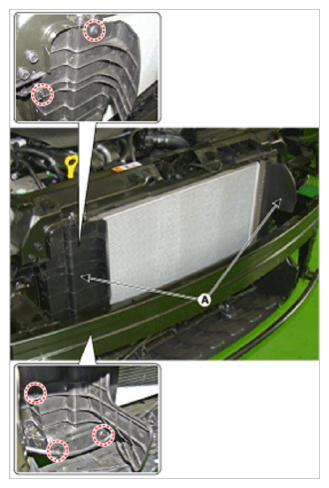

Remove the air guard (A).

Fig 2: Air Guard
Courtesy of KIA MOTORS AMERICA, INC.

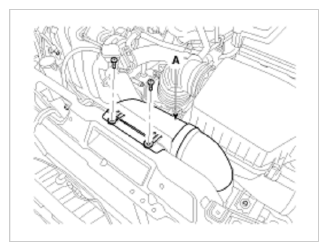

Remove the intake air duct (A).

Fig 3: Intake Air Duct
Courtesy of KIA MOTORS AMERICA, INC.

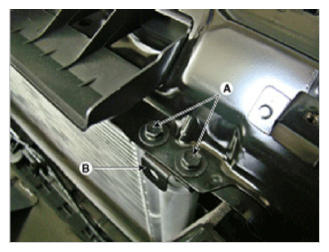

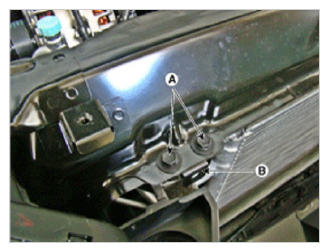

Remove the radiator upper bracket (B) loosening the radiator mounting bolts (A).

Fig 4: Radiator Upper Bracket Mounting Bolts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Radiator Upper Bracket Mounting Bolts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

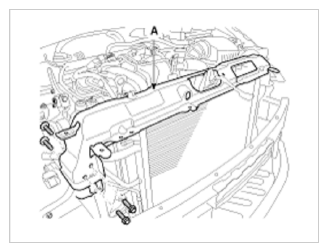

Loosen the mounting bolts and then remove the radiator upper bracket (A).

Fig 6: Radiator Upper Bracket
Courtesy of KIA MOTORS AMERICA, INC.

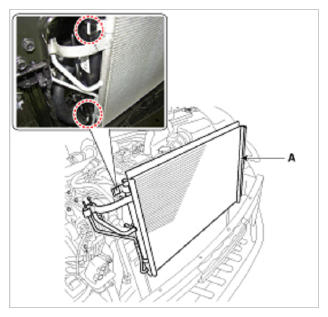

Remove the condenser (A) from radiator.

Fig 7: Condenser
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
- If you're installing a new condenser, add refrigerant oil ND-OIL8.
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a to avoid leakage.
- Be careful not to damage the radiator and condenser fins when installing the condenser.
- Be sure to install the lower mount cushions of condenser securely into the holes.
- Charge the system, and test its performance.
