Repair Procedures: Replacement
WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Put on gloves to protect your hands.
NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the rear console cover.
(Refer to " REAR CONSOLE COVER ")

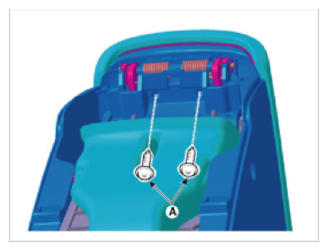

- Loosen the console armrest mounting screws (A).
- After loosening the mounting screws, then remove the console armrest (A).
- Install in the reverse order of removal.
Information
- Replace any damaged clips.
