Repair Procedures: Installation

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in the reverse order of removal.
    CAUTION: Use a new washer (A) whenever installing.

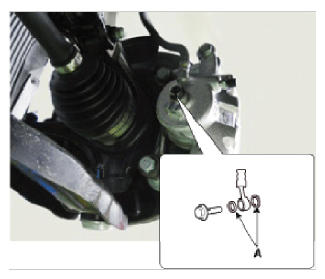

    Fig 1: Washer
    G09743743Courtesy of KIA MOTORS AMERICA, INC.
  2. After installation, bleed the brake system.

    (Refer to BRAKE SYSTEM BLEEDING )

  3. Check the spilled brake oil.
