Repair Procedures: Installation

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.
Compress the piston into the caliper body using the SST (09581-11000).

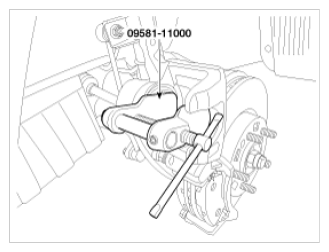

Fig 1: Compressing Piston Into Caliper Body Using SST
Courtesy of KIA MOTORS AMERICA, INC.
After installation, bleed the brake system.
(Refer to BRAKE SYSTEM BLEEDING )
CAUTION:
- Do not hit piston end by hammer or prying directly against piston face with screwdriver to push in piston.
- Using wood or used pad to protect piston end and pushing the wood or pad is recommended.
- When spreading a piston, SST should be cover all area of piston end face.
