Repair Procedures: Installation

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Remove the ignition key from the vehicle.
Disconnect the battery negative cable and wait for at least three minutes before beginning work.
Install the SRSCM with the SRSCM mounting bolt and nuts.
Tightening Torque: 8.0 ~ 10.0 N.m (0.82 ~ 1.02 kgf.m, 5.9 ~ 7.4 lb-ft)

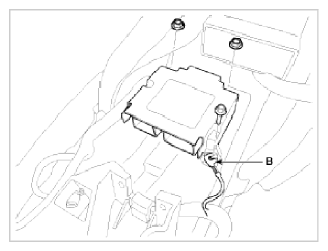

Fig 1: SRSCM Ground Wire, Mounting Bolt And Nuts
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Use new mounting bolt and nuts when replacing the SRSCM after a collision.
When installing the SRSCM bolt, install the ground wire (B) with a bolt as indicated above picture.
Connect the SRSCM harness connector.
Install the rear air vent duct and floor console.
(Refer to FLOOR CONSOLE )
Reconnect the battery negative cable.
After installing the SRSCM, confirm proper system operation:
1. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
