Repair Procedures: Removal

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console.

    (Refer to FLOOR CONSOLE )

  4. Remove the rear air vent duct (A).
    Fig 1: Rear Air Vent Duct
    G09743652Courtesy of KIA MOTORS AMERICA, INC.
  5. Pull up the lock, of the SRSCM connector, the disconnect the connector (A).

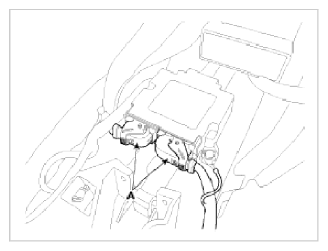

    Fig 2: SRSCM Connectors
    G09743653Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the SRSCM mounting bolt and nuts from the SRSCM, then remove the SRSCM.
