Variant Coding Procedure

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

On-Line Type On GDS
1. With the ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as instructed.

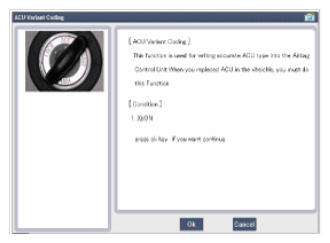

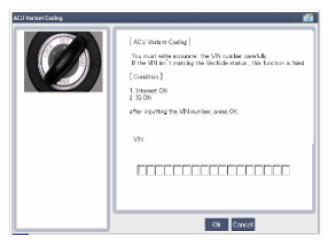

  1. Initial ACU Variant Coding screen

    Fig 1: Display - ACU Variant Coding Screen
    Courtesy of KIA MOTORS AMERICA, INC.
  2. VIN Code entering screen

    Fig 2: Display - VIN Code Entering Screen
    Courtesy of KIA MOTORS AMERICA, INC.

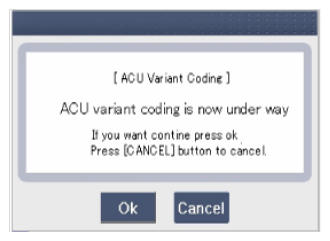

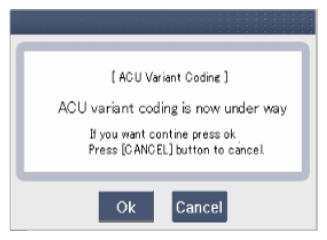

  3. Variant coding's proceeding screen-1

    Fig 3: Display - Variant Coding's Proceeding Screen-1
    Courtesy of KIA MOTORS AMERICA, INC.

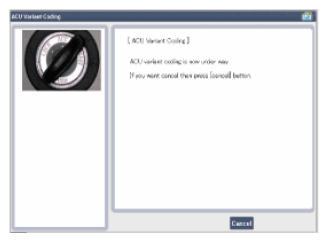

  4. Variant coding's proceeding screen-2

    Fig 4: Display - Variant Coding's Proceeding Screen-2
    Courtesy of KIA MOTORS AMERICA, INC.

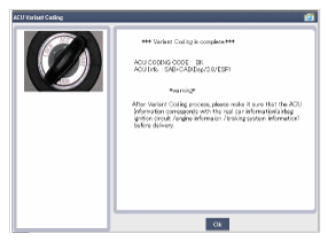

  5. Variant coding is completed

    Fig 5: Display - Variant Coding's Completion Screen
    Courtesy of KIA MOTORS AMERICA, INC.

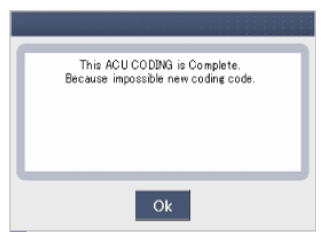

    NOTE:
    This screen is opened when you try the variant coding again on the SRSCM that already has the variant coding performed.

    Fig 6: Display - ACU Coding's Completion Screen
    Courtesy of KIA MOTORS AMERICA, INC.

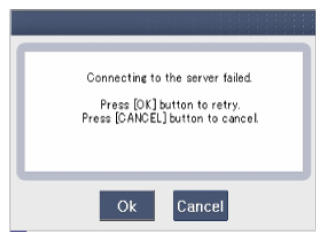

    If communication fails, the following screen will appear.
    Fig 7: Display - ACU Coding's Confirmation Screen
    Courtesy of KIA MOTORS AMERICA, INC.
Off-Line Type On GDS (This Can Be Used When Not Connecting To Internet)
1. Initial ACU Variant Coding screen

  Fig 8: Display - Initial ACU Variant Coding Screen
  Courtesy of KIA MOTORS AMERICA, INC.

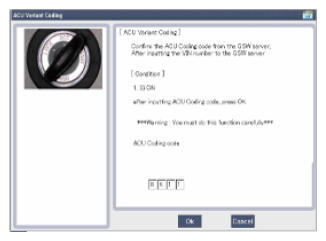

2. ACU Coding Code entering screen

  Fig 9: Display - ACU Coding Code Entering Screen
  Courtesy of KIA MOTORS AMERICA, INC.

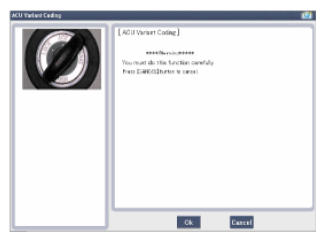

3. Screen of rechecking ACU Coding code's entering

  Fig 10: Display - Rechecking ACU Coding Code's Entering Screen
  Courtesy of KIA MOTORS AMERICA, INC.
4. Variant coding's proceeding screen-1

  Fig 11: Display - Variant coding's Proceeding Screen-1
  Courtesy of KIA MOTORS AMERICA, INC.
5. Variant coding's proceeding screen-2

  Fig 12: Display - Variant coding's Proceeding Screen-2
  Courtesy of KIA MOTORS AMERICA, INC.
6. Variant coding is completed

  Fig 13: Display - Variant Coding's Completion Screen
  Courtesy of KIA MOTORS AMERICA, INC.
  NOTE:
  1. This screen is opened when you try the variant coding again on the SRSCM that already has the variant coding performed.
  Fig 14: Display - ACU Coding's Completion Screen
  Courtesy of KIA MOTORS AMERICA, INC.
