Components And Components Location: Components

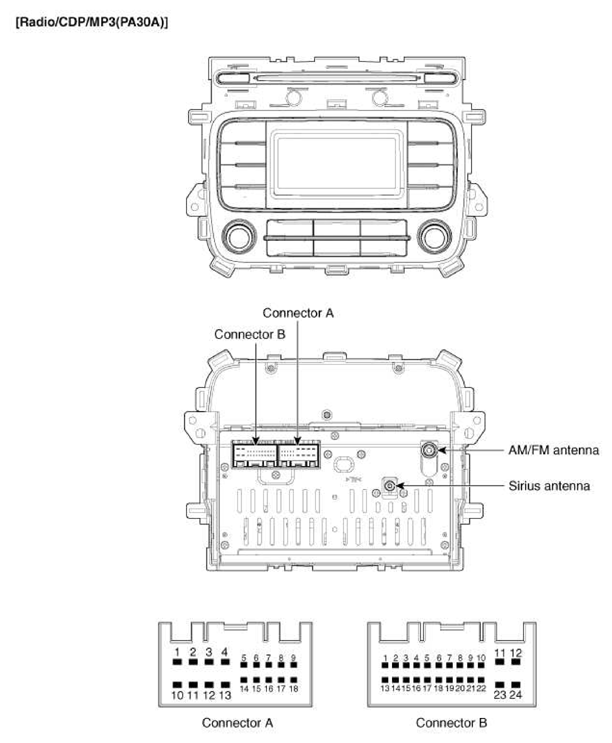

CONNECTOR PIN INFORMATION
| No. | Connector A | Connector B |
|---|---|---|
| 1 | Rear left speaker (+) | - |
| 2 | Front left speaker (+) | - |
| 3 | Front right speaker (+) | - |
| 4 | Rear right speaker (+) | Steering remocon |
| 5 | - | - |
| 6 | - | USB data line D (+) |
| 7 | - | USB/iPod VDD |
| 8 | Illumination (+) | AUX R input |
| 9 | Detent | AUX ground |
| 10 | Rear left speaker (-) | Mic (+) (Bluetooth) |
| 11 | Front left speaker (-) | ACC |
| 12 | Front right speaker (-) | Battery (+) |
| 13 | Rear right speaker (-) | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | Vehicle speed |
| 17 | Illumination (-) | Remote control ground |
| 18 | Remote antenna | USB data line D (-) |
| 19 | USB/iPod ground | |
| 20 | AUX detect | |
| 21 | AUX L input | |
| 22 | Mic (-) (Bluetooth) | |
| 23 | - | |
| 24 | Power ground |

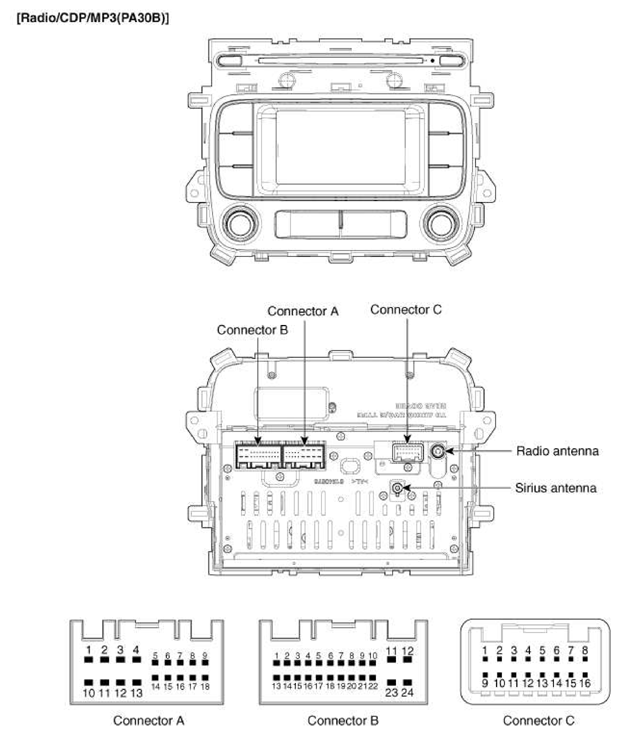

CONNECTOR PIN INFORMATION
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Rear left speaker (+) | - | - |
| 2 | Front left speaker (+) | - | - |
| 3 | Front right speaker (+) | - | Camera GND |
| 4 | Rear right speaker (+) | Steering remote | Camera VIN |
| 5 | - | - | |
| 6 | - | USB D (+) | - |
| 7 | - | USB/iPod VDD | - |
| 8 | Illumination (+) | AUX R Input | - |
| 9 | - | AUX ground | - |
| 10 | Rear left speaker (-) | MIC(+) (Bluetooth) | Camera B(+) |
| 11 | Front left speaker (-) | ACC | P GND |
| 12 | Front right speaker (-) | B(+) | R position |
| 13 | Rear right speaker (-) | - | - |
| 14 | - | - | - |
| 15 | - | Auto light | - |
| 16 | - | Vehicle speed | - |
| 17 | Illumination (-) | Remote GND | |
| 18 | Remote antenna | USB D (-) | |
| 19 | USB/iPod GND | ||
| 20 | AUX detect | ||
| 21 | AUX L Input | ||
| 22 | MIC(-) (Bluetooth) | ||
| 23 | - | ||
| 24 | Power GND |
