Components And Components Location: Components

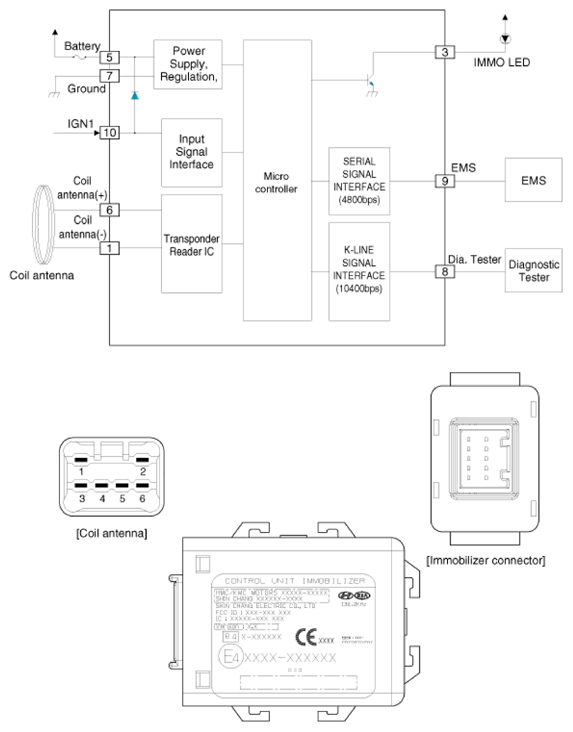

Fig 1: Immobilizer System Communication Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
