Component Inspection

■ Perform HO2S(S2) Heater

1. Connect GDS to Data Link Connector (DLC).
2. IG KEY "ON" & ENG "OFF".
3. Perform "Actuation Test"  for HO2S(S2) Heater.

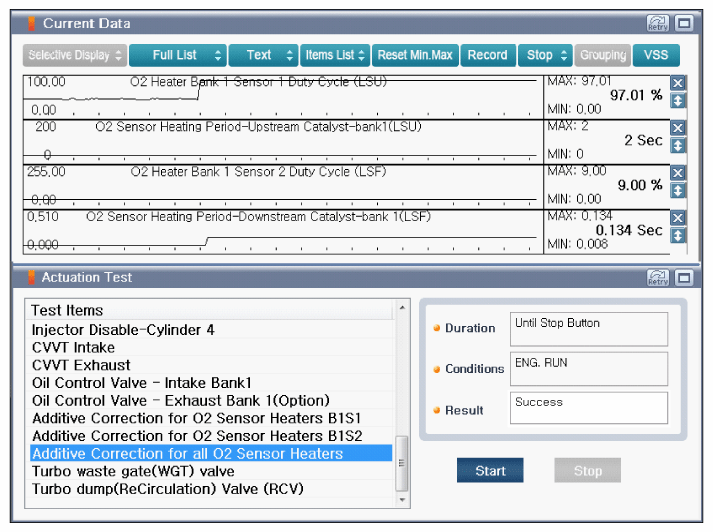

   Fig 1: Screen Display - HO2S(S2) Heater Actuation Test (1 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.

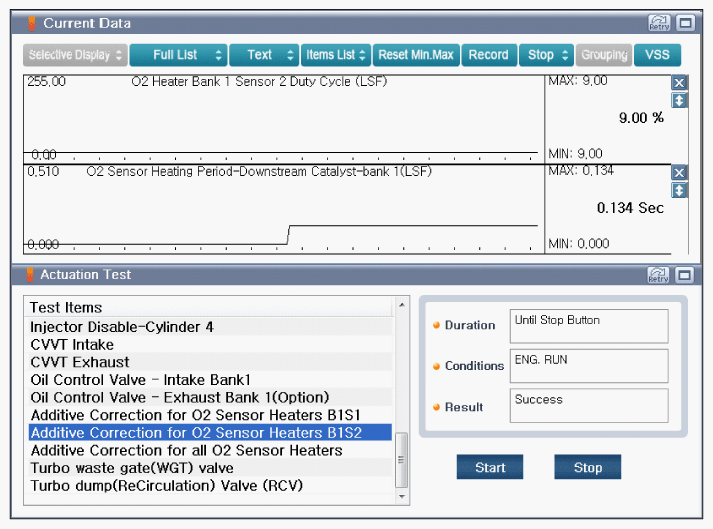

   Fig 2: Screen Display - HO2S(S2) Heater Actuation Test (2 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.

■ Inspection HO2S(S2) Heater

1. IG Key "OFF".
2. Disconnect HO2S(S2) connector.
3. Measure resistance between heater power and heater control terminal of the HO2S(S2) Heater. (Component Side)

   Specification:  Approx. 9.0Ω(20°C) (68°F)

■ Confirm Part Inspection

1. Does the HO2S(S2) Heater work properly? (Check variation)

   YES

   • Go to "Verification Of Vehicle Repair " procedure.

   NO

   • Substitute with a known-good HO2S(S2) and check for proper operation. If the problem is corrected, replace HO2S(S2) and then go to "Verification Of Vehicle Repair " procedure.
