Components and Components Location: Components

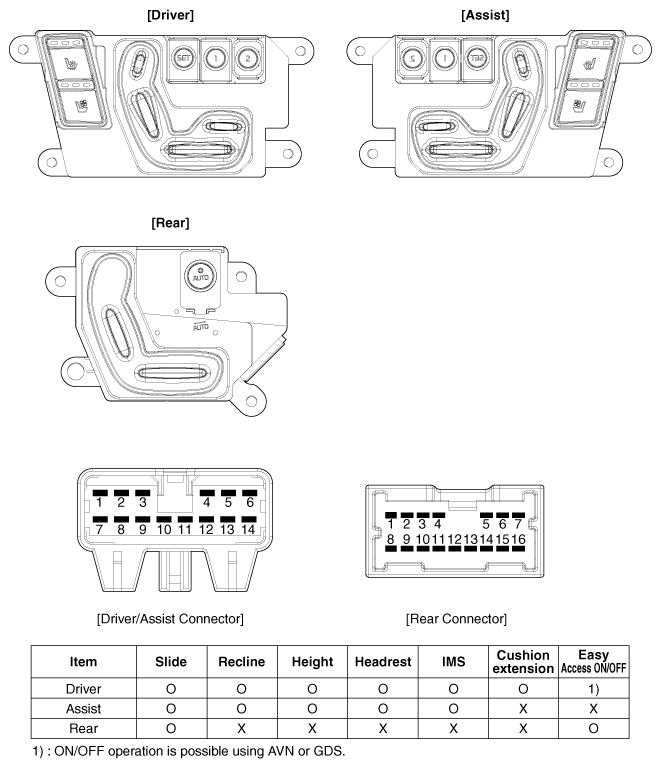

Fig 1: Memory Power Seat Switch Connectors

G11801729

Courtesy of KIA MOTORS AMERICA, INC.

No.	Dirver	Assist	Rear
No.
Option	Head + IMS	Head + Air + Height	Heater
1	ECU battery (+)	ECU battery (+)	Tail lamp
2	IGN1	IGN1	-
3	Tail lamp	Tail lamp	Illumination (-)
4	-	-	GND
5	Illumination (-)	Illumination (-)	-
6	GND	GND	Forward slide switch
7	-	-	Backward slide switch
8	-	-	-
9	-	-	-
10	-	-	-
11	-	-	Auto switch signal input
12	LIN BUS	LIN BUS	Auto switch IND output
13	-	-	Auto switch signal output
14	-	-	-
15			Detent
16			Auto switch IND input
