Driver Door Module (DDM)

The BCM can be diagnosed by using the GDS. The BCM communicates with the GDS which then displays inputs and outputs along with codes.
To diagnose the DDM function, select the vehicle model, BCM and DDM/ADM system.
Select "Current Data", if you want to check current data of DDM system. It provides input/output status of DDM.

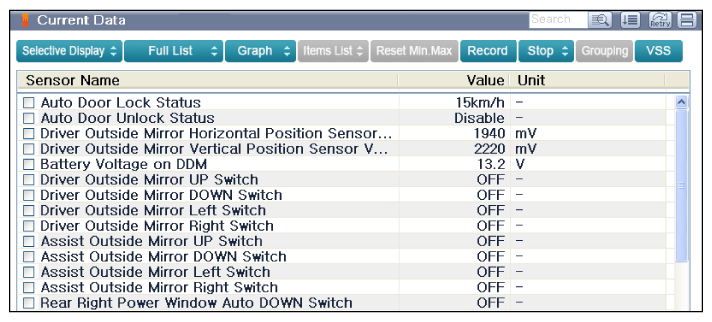

Fig 1: Screen Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.
Select "Actuation test", if you want to check the DDM module data operation forcefully.

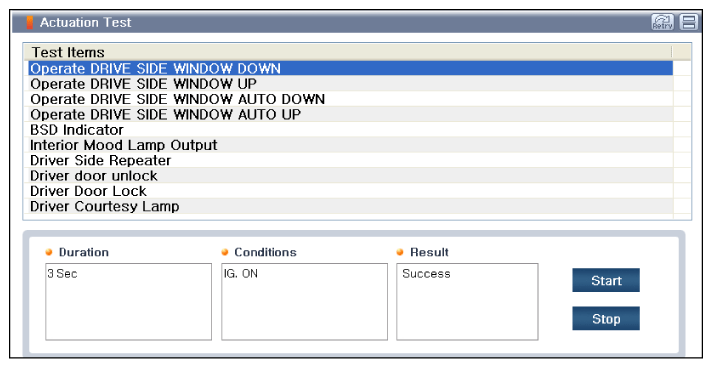

Fig 2: Screen Display - Actuation Test

Courtesy of KIA MOTORS AMERICA, INC.
