Components (1)

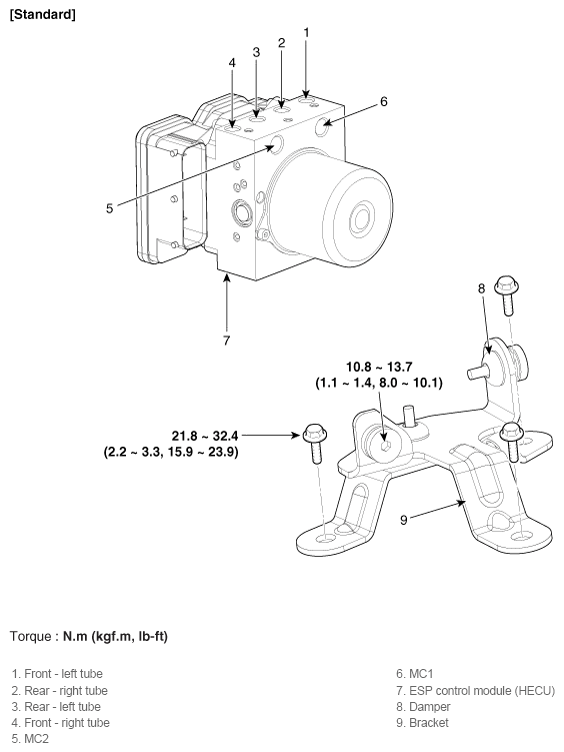

Fig 1: ESP Control Module (HECU) Components (1) With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
