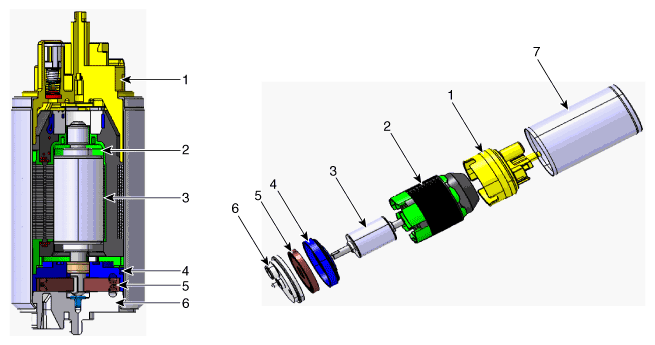

Components and Components Location: Components
| Pin NO. | Item | Description |
|---|---|---|
| 1 | Upper body | 3-phase coil power supply, fuel delivery, and sealing |
| 2 | Stator assembly | Creates an N pole and S pole flux to induce the rotor to turn. |
| 3 | rotor assembly | Torque is generated by the N pole and S pole flux of the stator. |
| 4 | cover pump | Creates pressure to supply fuel. |
| 5 | impeller | The turning rotor generates the pressure and flow rate of the fuel. |
| 6 | body assembly | Takes in the fuel mixture and pressurizes it. |
| 7 | housing | Protects and seals components. |
Information
- Fuel pump motor is assembly type.
