Component Location
WARNING:
This page is about a different variant/trim than selected.

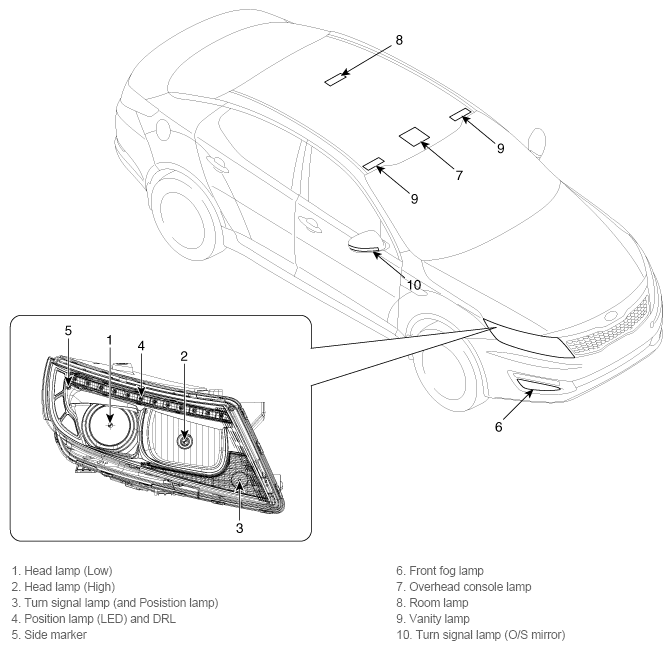

Fig 1: Lighting System Components Location (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

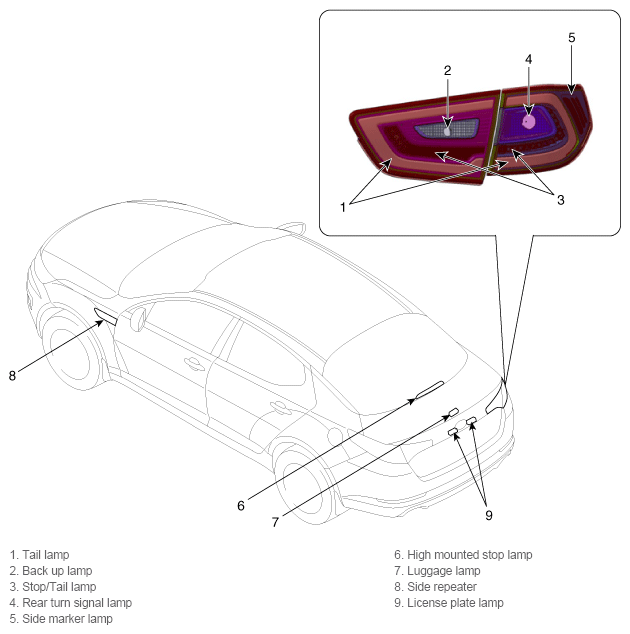

Fig 2: Lighting System Components Location (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
