Antenna Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".
    Fig 1: Display - Antenna Status Check Screen
    G11817812Courtesy of KIA MOTORS AMERICA, INC.
  3. After IG ON, select the "Antenna Status Check".

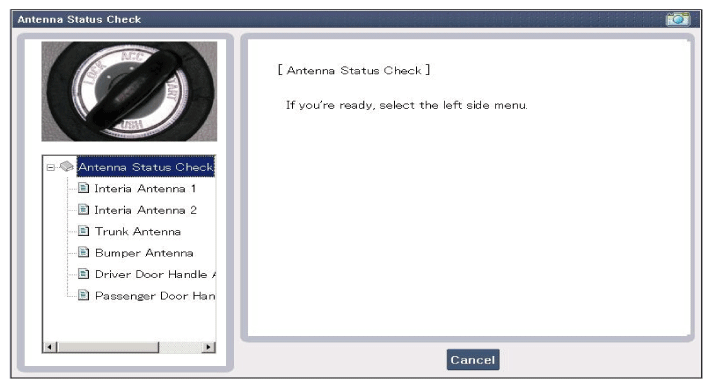

    Fig 2: Display - Antenna Status Check Screen
    G11817813Courtesy of KIA MOTORS AMERICA, INC.
  4. Set the smart key near the related antenna and operate it with a GDS.

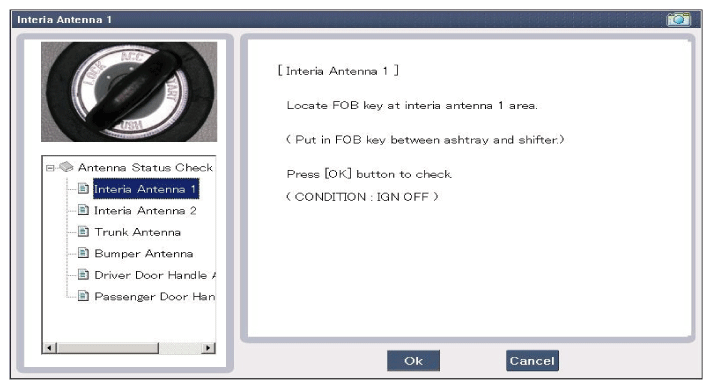

    Fig 3: Screen Display - Interior Antenna 1 (1 Of 2)
    G11817814Courtesy of KIA MOTORS AMERICA, INC.

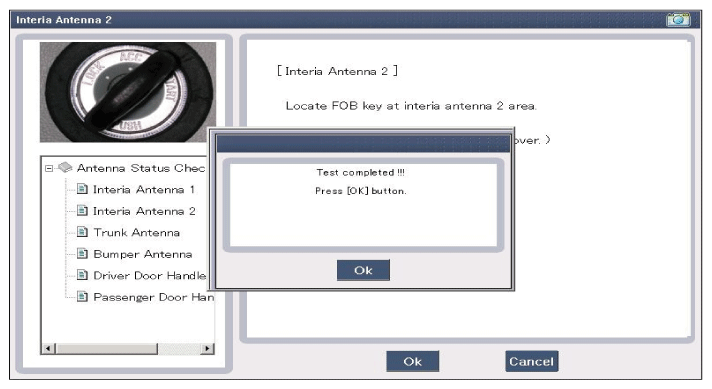

    Fig 4: Screen Display - Test Completeness Test Screen(2 Of 2)
    G11817815Courtesy of KIA MOTORS AMERICA, INC.
  5. If the smart key runs normal, the related antenna, smart key(transmission, reception) and exterior receiver are normal.
  6. Antenna status
