Neutralization Status Check

WARNING: This page is about a different variant/trim than selected.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

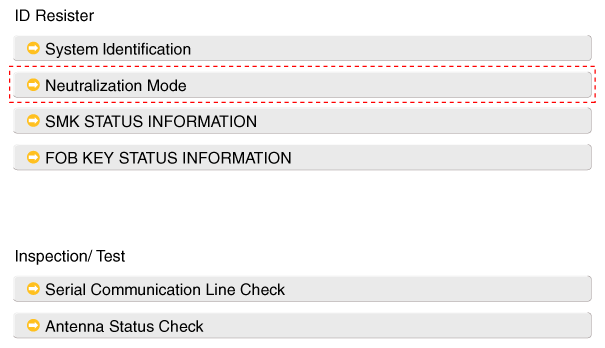

After IGN ON, select the "Neutralization mode".

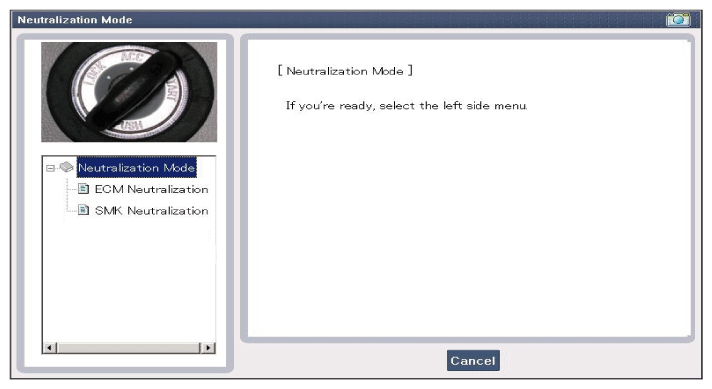

Fig 1: Screen Display - Neutralization Mode Screen (1 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Screen Display - Neutralization Mode Screen (2 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

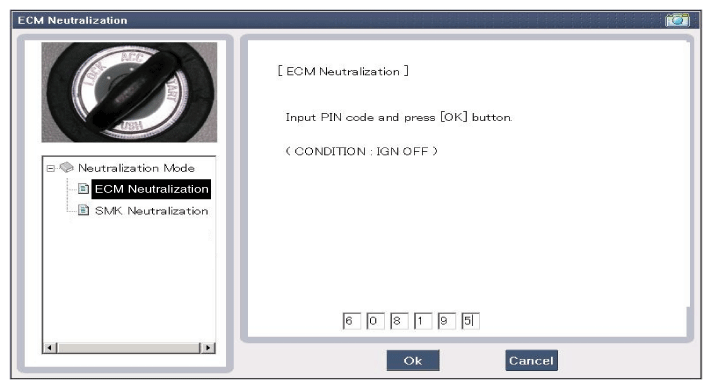

Fig 3: Screen Display - ECM Neutralization Screen (3 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

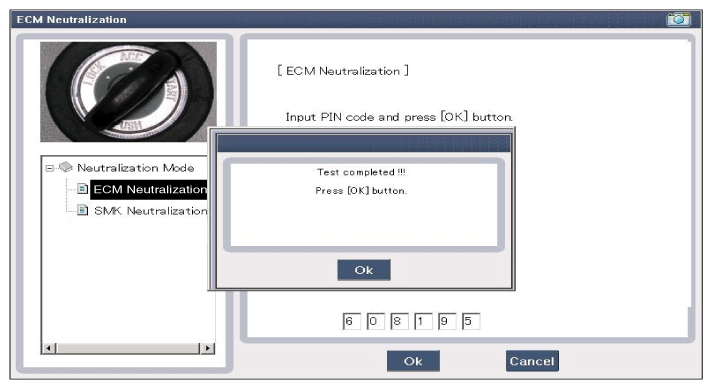

Fig 4: Screen Display - ECM Neutralization Test Completed Screen (4 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Screen Display - SMK Neutralization (5 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Screen Display - SMK Neutralization (6 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

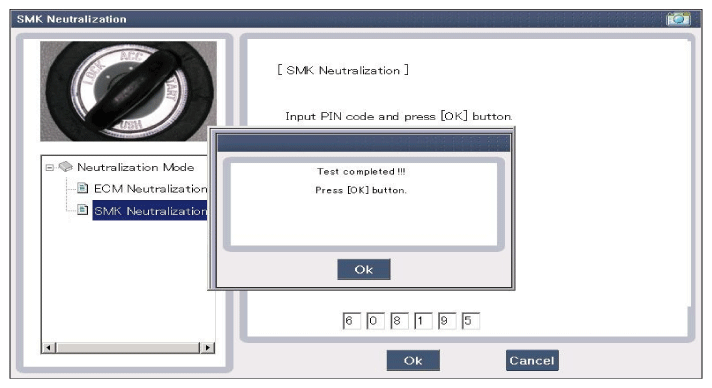

Fig 7: Screen Display - SMK Neutralization Test Completed (7 Of 7)

Courtesy of KIA MOTORS AMERICA, INC.

INPUT SWITCH LIST

No	Item name	Unit
1	SSB SW1	-
2	SSB SW2	-
	3 ACC	-
4	IGN1	-
5	IGN2	-
6	ACC/IGN1/IGN2 Relay	-
7	Gear "P" Position (A/T) Clutch SW (M/T)	-
8	Brake SW	-
9 FL Door	Lock Button	-
10 FR Door	Lock Button	-
11 Trunk	Release Button	-
12	Battery Voltage	-
13	Wheel Speed	-

ACTUATOR LIST

No.	Item name	Condition
1	External Buzzer	Ignition switch ON Engine off
2	Interior Antenna 1 Active	Ignition switch ON Engine off
3	Interior Antenna 2 Active	Ignition switch ON Engine off
4	Trunk Antenna Active	Ignition switch ON Engine off
5	Bumper Antenna Active	Ignition switch ON Engine off
6	DRV_DR Antenna Active	Ignition switch ON Engine off
7	AST_DR Antenna Active	Ignition switch ON Engine off
8	BBS Illumination (OFF/ACC/ON)	Ignition switch ON Engine off
9	ACC/IGN1/IGN2 Relay	Ignition switch ON Engine off
