Smart Key Status Check

WARNING: This page is about a different variant/trim than selected.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "SMK STATUS INFO".

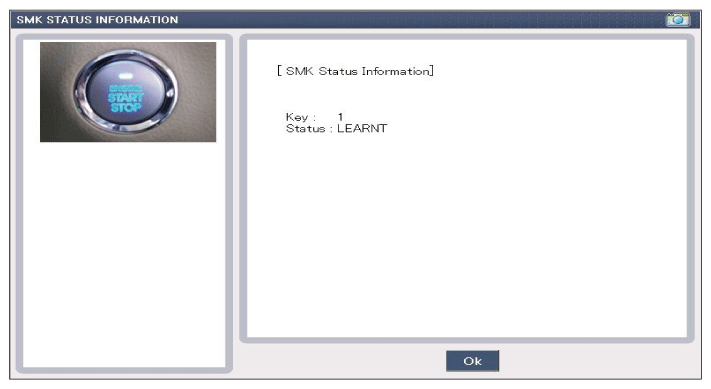

Fig 1: Screen Display - SMK Status Information (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

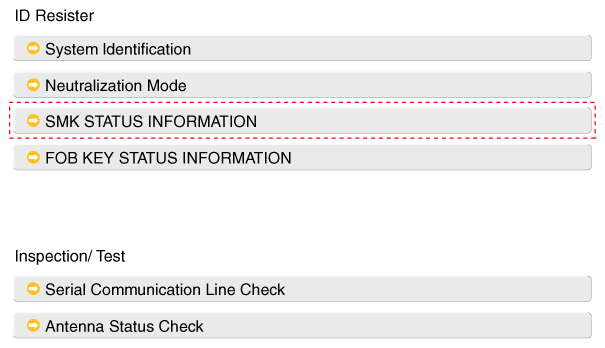

Fig 2: Screen Display - SMK Status Learnt (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
