Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

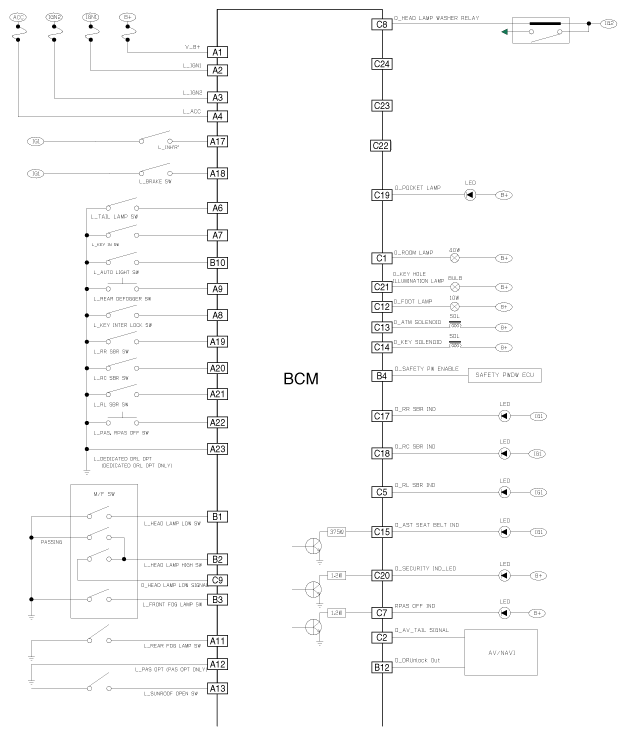

Fig 1: Body Control Module Circuit Diagram (1 Of 2)
G11817902Courtesy of KIA MOTORS AMERICA, INC.

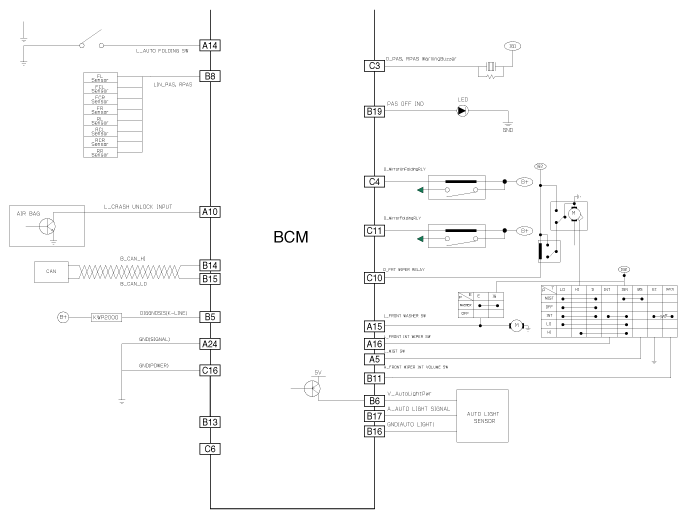

Fig 2: Body Control Module Circuit Diagram (2 Of 2)
G11817903Courtesy of KIA MOTORS AMERICA, INC.
