Circuit Diagram

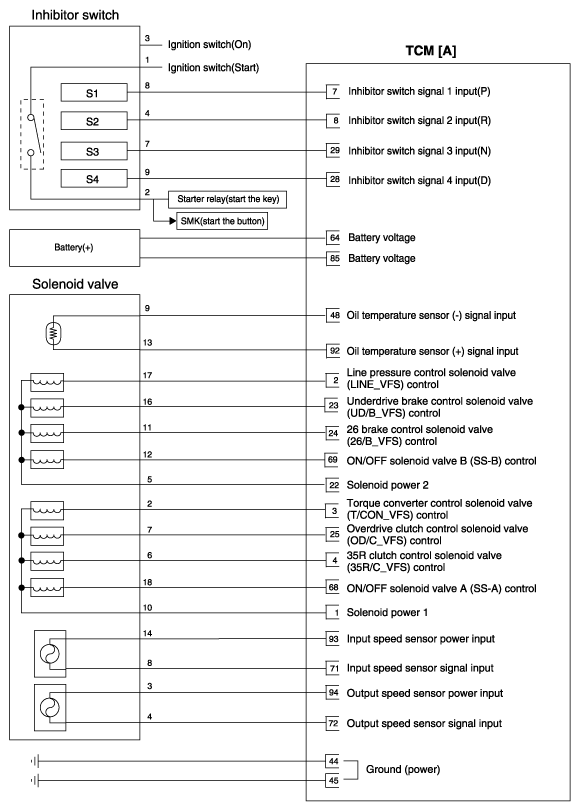

Fig 1: Inhibitor Switch Circuit (1 Of 2)
G11829961Courtesy of KIA MOTORS AMERICA, INC.

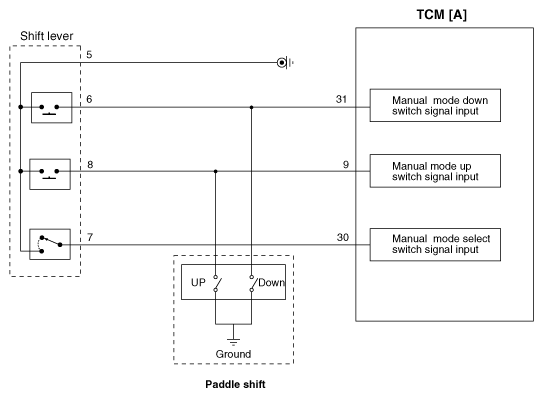

Fig 2: Inhibitor Switch Circuit (2 Of 2)
G11829962Courtesy of KIA MOTORS AMERICA, INC.
