Repair Procedures: Installation

Install in the reverse order of removal.
NOTE:
- If install the new transaxle, remove the hanger bracket (A) and then install the transaxle. (Does not need to be re-installed)

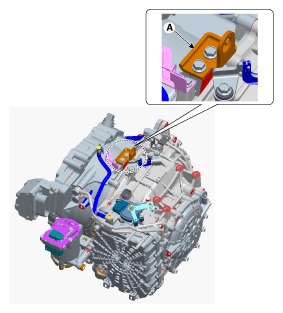

  Fig 1: Removing Hanger Bracket And Transaxle
  Courtesy of KIA MOTORS AMERICA, INC.
- If the oil seal on the transaxle is damaged and fluid is leaking, replace the oil seal. When installing the new oil seal, use the specialized tool (oil seal installer: 09452-3D100).
- Perform the procedures below after replacing the transaxle.
1. Refill the automatic transaxle with fluid.
  (Refer to FLUID .)
2. Refill the engine & transaxle system with coolant.
  (Refer to COOLANT. )
3. Refill the hybrid motor cooling system with coolant and then perform the air bleeding using the GDS.
  (Refer to COOLANT. )
4. Clear the diagnostic trouble codes (DTC) using the GDS. Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the GDS.
5. Reset the automatic transaxle adaptive values using the GDS.

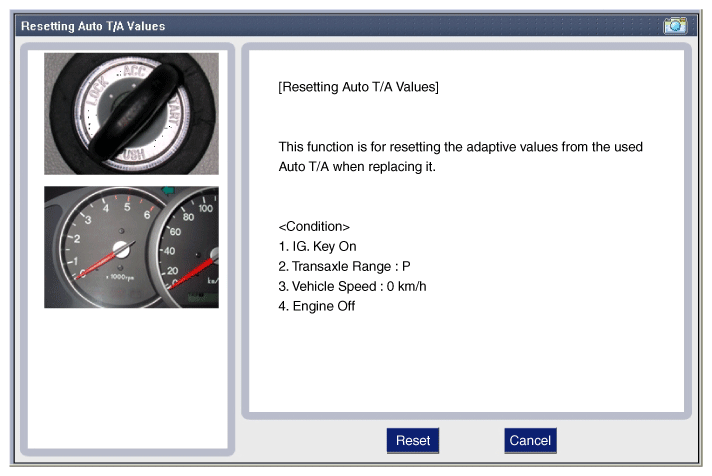

  Fig 2: Display Of Resetting Auto T/A Value Screen
  Courtesy of KIA MOTORS AMERICA, INC.
6. Perform the resolver sensor calibration using the GDS.
  (Refer to RESOLVER SENSOR .)
7. Perform the clutch pressure sensor calibration using the GDS.
  (Refer to CLUTCH PRESSURE SENSOR (CPS) .)
8. Perform the TCM adaptive values learning procedure.
  (Refer to Automatic Transaxle Control System - REPAIR PROCEDURES. )
