Signal Waveform

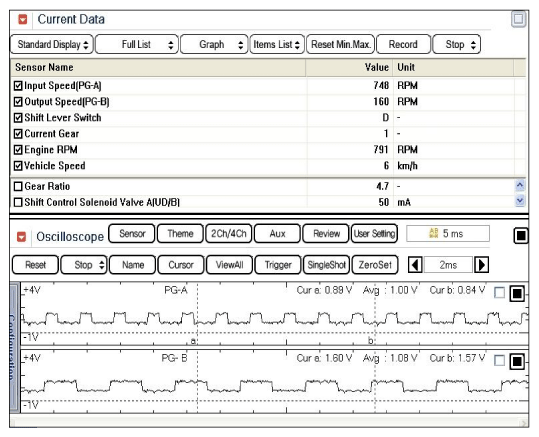

Fig 1: Screen Display - Signal Waveform (Current Data And Oscilloscope) (1 Of 2)
G11815974Courtesy of KIA MOTORS AMERICA, INC.

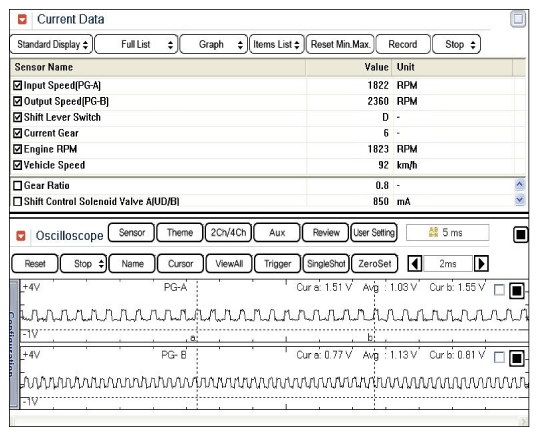

Fig 2: Screen Display - Signal Waveform (Current Data And Oscilloscope) (2 Of 2)
G11815975Courtesy of KIA MOTORS AMERICA, INC.
