Engine Control System - 1.6L - Optima (Except HEV)
>>
Accelerator Position Sensor (APS)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

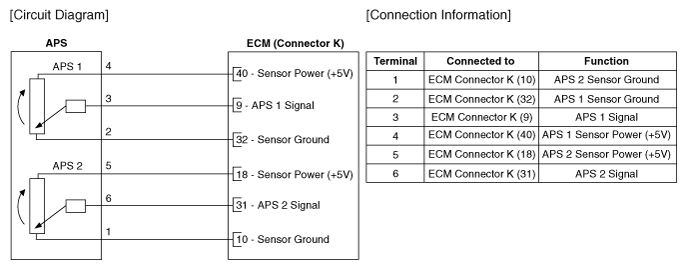

Circuit Diagram
Fig 1: Accelerator Position Sensor Circuit
Courtesy of KIA MOTORS AMERICA, INC.
