ETC (Electronic Throttle Control) System: Specification

[TPS1]

Item	Opening Percentage (%)	Output Voltage (V) [Vref = 5V]
C. T	7 - 13	0.35 - 0.65
W.O. T	88.6 - 94	4.43 - 4.70

[TPS2]

Item	Opening Percentage (%)	Output Voltage (V) [Vref = 5V]
C. T	87 - 93	4.35 - 4.65
W.O. T	6 - 11.4	0.3 - 0.57

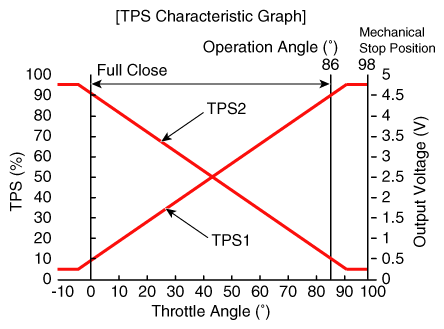

Fig 1: TPS Characteristic Graph

Courtesy of KIA MOTORS AMERICA, INC.

[ETC Motor]

Item	Specification
Coil Resistance (Ω)	0.3 - 100 [20°C (68°F)]
