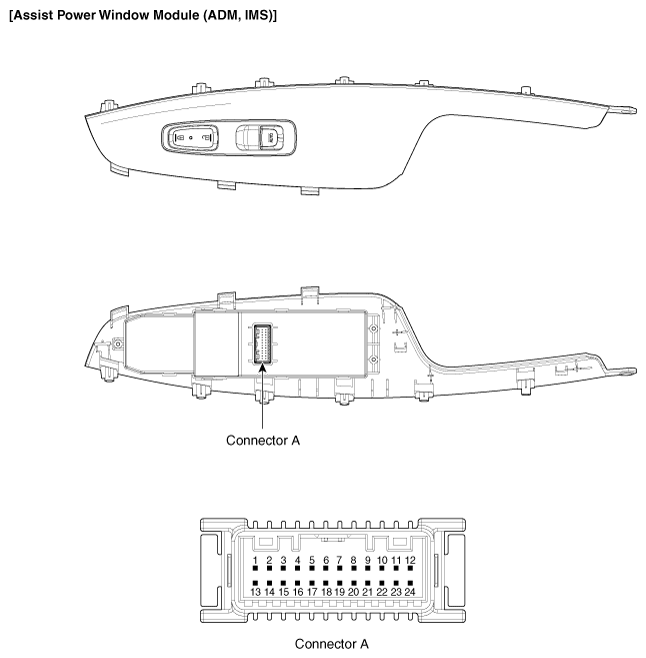

Assist Power Window Switch
ALL SAFETY
| No. | Description |
|---|---|
| 1 | Mirror power (+) |
| 2 | Front left window |
| 3 | - |
| 4 | GND |
| 5 | - |
| 6 | - |
| 7 | - |
| 8 | - |
| 9 | - |
| 10 | - |
| 11 | - |
| 12 | Mirror horizontal switch |
| 13 | Mirror vertical switch |
| 14 | Mirror center switch |
| 15 | Chassis-CAN (Low) |
| 16 | Chassis-CAN (High) |
| 17 | GND |
| 18 | Mirror sensor ground |
| 19 | Mirror horizontal sensor |
| 20 | Mirror vertical sensor |
| 21 | Mirror sensor power |
| 22 | - |
| 23 | IGN1 |
| 24 | Battery (+) |
DRIVER/PASSENGER SAFETY, DRIVER/PASSENGER SAFETY + DOOR LOCK SWITCH
| No. | Description |
|---|---|
| 1 | Mirror power (+) |
| 2 | Front left window |
| 3 | Front left Enable |
| 4 | GND |
| 5 | Rear right window lock switch |
| 6 | Rear right window (Up) |
| 7 | Rear right window (Down) |
| 8 | - |
| 9 | - |
| 10 | - |
| 11 | - |
| 12 | Mirror horizontal switch |
| 13 | Mirror vertical switch |
| 14 | Mirror center switch |
| 15 | Chassis-CAN (Low) |
| 16 | Chassis-CAN (High) |
| 17 | GND |
| 18 | Mirror sensor ground |
| 19 | Mirror horizontal sensor |
| 20 | Mirror vertical sensor |
| 21 | Mirror sensor power |
| 22 | - |
| 23 | IGN1 |
| 24 | Battery (+) |
