Smart Key Code Saving

WARNING: This page is about a different variant/trim than selected.

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.

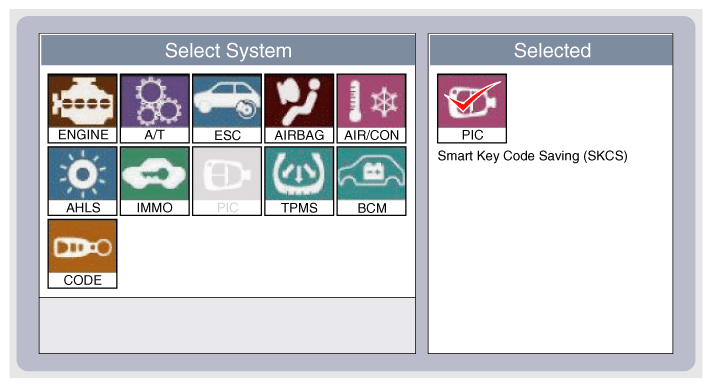

Select the vehicle model and then do "Smart key code saving".

Fig 2: Selecting Smart Key Code Saving Screen
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Display - Smart Key Code Saving ID Register Screen
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

Fig 4: Selecting Smart Key Teaching Screen
Courtesy of KIA MOTORS AMERICA, INC.

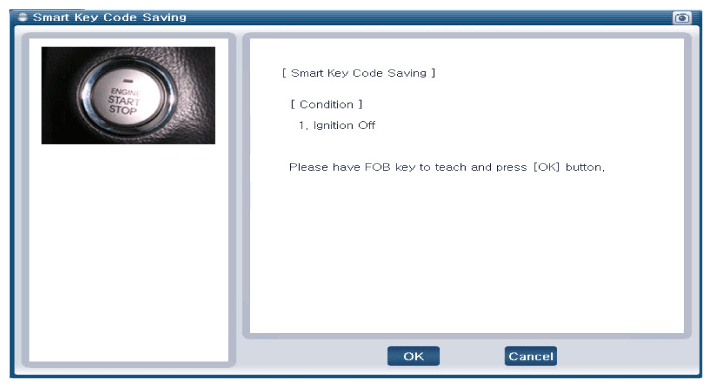

After having the teaching smart key, push "ENTER" key.
Input the "Pin code" for first key teaching.

Fig 5: Display - Smart Key Teaching Screen Status Neutral
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Display - Smart Key Teaching Message Completion Screen
Courtesy of KIA MOTORS AMERICA, INC.

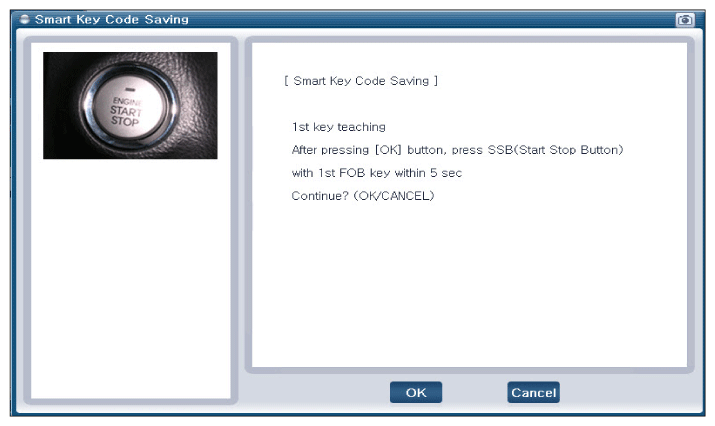

Press the SSB with smart key within 5 sec after pressing "OK".

Fig 7: Display - Smart Key Code Saving Screen
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

Fig 8: Display - First Key Teaching Completed Message Screen
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 9: Display - First Key Teaching Completed Message Screen
Courtesy of KIA MOTORS AMERICA, INC.

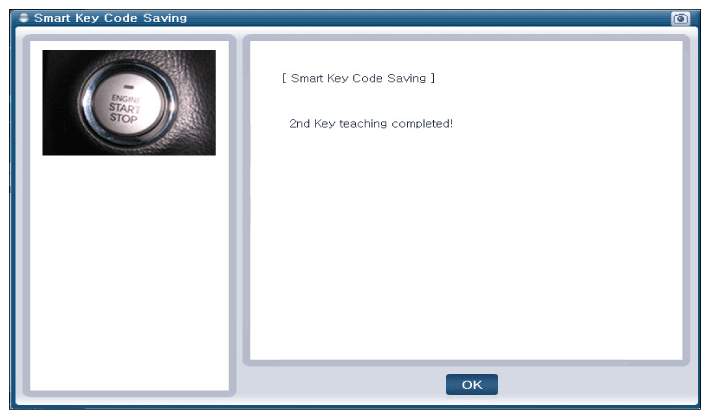

Confirm the message "Second key teaching completed".

Fig 10: Display - Second Key Teaching Completed Message Screen
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be shown as below when key teaching process is completed.

Fig 11: Display - Smart Key Teaching Completed Message Screen

Courtesy of KIA MOTORS AMERICA, INC.
