Components and Components Location: Components

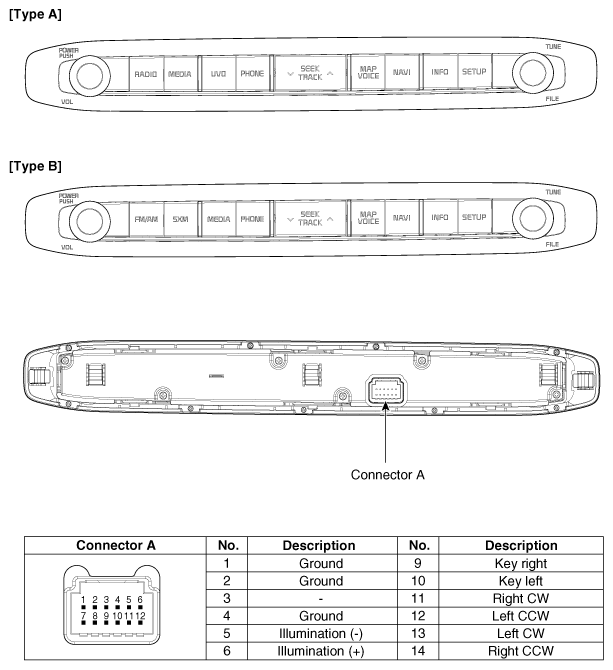

Fig 1: Location AVN Keyboard Components

G11858459

Courtesy of KIA MOTORS AMERICA, INC.
