Components and Components Location: Components

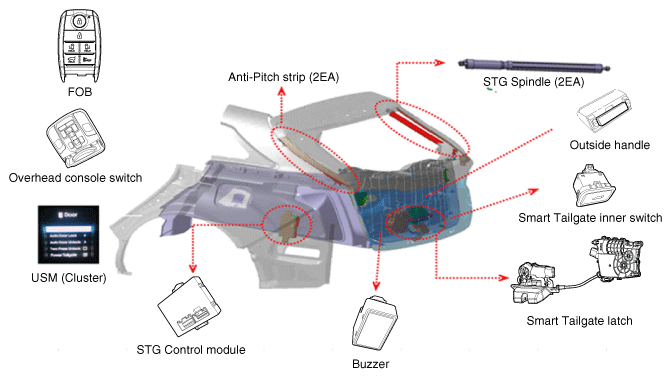

Fig 1: Location Smart Tail Gate System Components
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Smart Tail Gate System Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
