Component Inspection

■ Check APS

1. Connect GDS to Data Link Cable (DLC).
2. Warm up the engine to normal operating temperature.
3. Check the "Current Data" about related DTC with GDS.

   Specification:  Refer to Fig 1

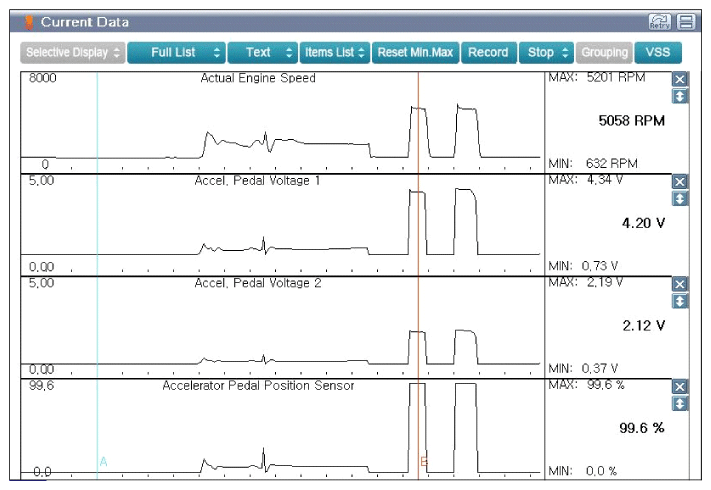

   Fig 1: Scantool Display - Engine Idle (Approx 2000 RPM And 5000 RPM)

   Courtesy of KIA MOTORS AMERICA, INC.
4. Are the parameters displayed correctly?

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Carefully redo this troubleshooting guide steps.
   • If the diagnostics have been performed correctly with no failure found, replace the APS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
