Repair Procedures: Inspection

WARNING: This page is about a different car, the 2016 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

Remove the crash pad lower panel.
(Proceed to Body - "CRASH PAD LOWER PANEL ")
Check for continuity between terminals (A) of the power trunk switch and replace the switch in case of no continuity.

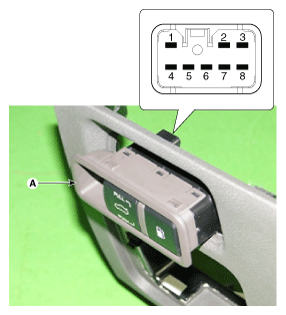

Fig 1: Power Trunk Switch Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Power Trunk Switch Connector Terminals Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
