Smart Key Code Saving

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.

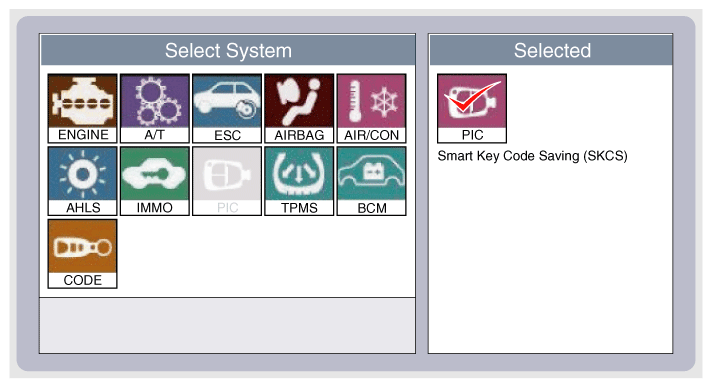

Select the vehicle model and then do "Smart key code saving".

Fig 2: Screen Display - Smart Key Code Saving (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Screen Display - Smart Key Code Saving (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart Key Teaching" menu, push "Enter" key, then the screen will be displayed as shown below.

Fig 4: Screen Display - Smart Key Teaching Menu
Courtesy of KIA MOTORS AMERICA, INC.

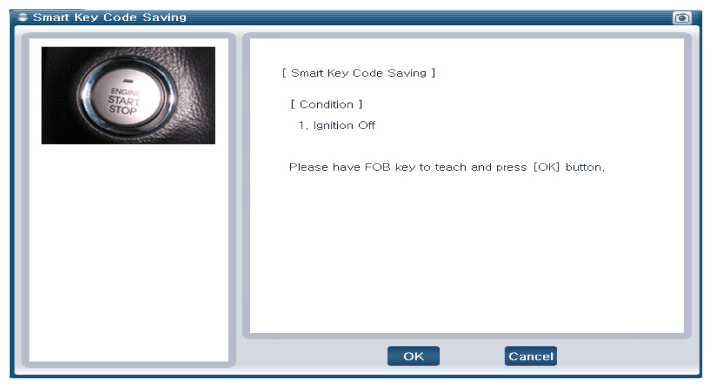

After having the teaching smart key, push "ENTER" key.
Input the "Pin Code" for first key teaching.
Information

Neutralization mode is not required.

Fig 5: Screen Display - Smart Key Code Saving (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Screen Display - Smart Key Code Saving (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

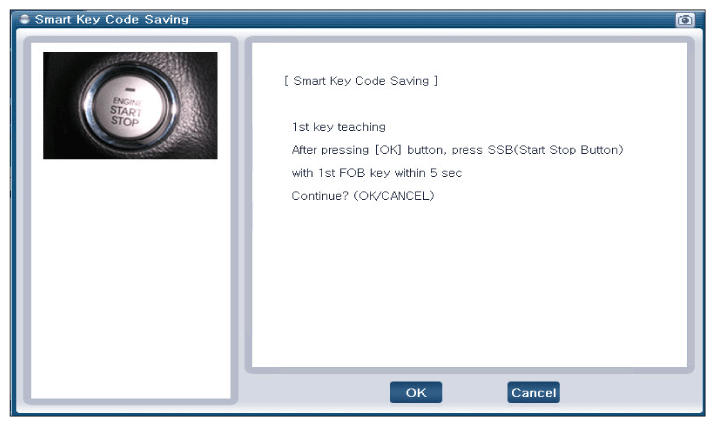

Press the SSB with smart key within 5 sec after pressing "OK".

Fig 7: Screen Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

Fig 8: Screen Display - Message First Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 9: Screen Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

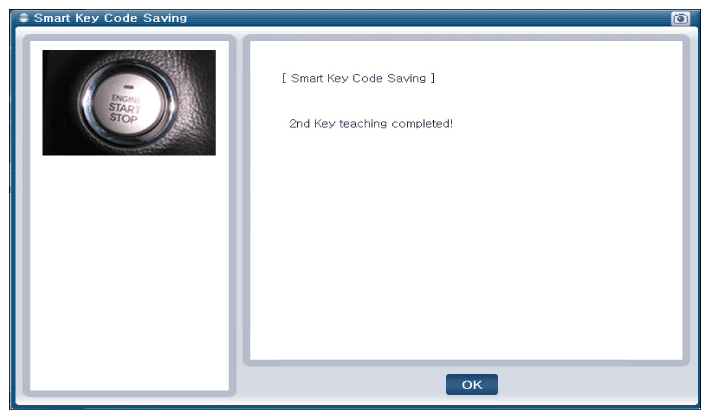

Confirm the message "Second key teaching completed".

Fig 10: Screen Display - Message Second Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be displayed as shown below when key teaching process is completed.
Information

Repeat the procedure for Card Key.

Fig 11: Screen Display - Smart Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.
