Power Trunk Module Initialization

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

The trunk location data is initialized by pressing the trunk inner switch and outside handle switch at the same time.

Perform initialization in the following procedure as the power trunk module regards the closed position of trunk and locked status of latch as the zero position.

Initialization Procedure (Setting Maximum Opening Location of Trunk Lid)

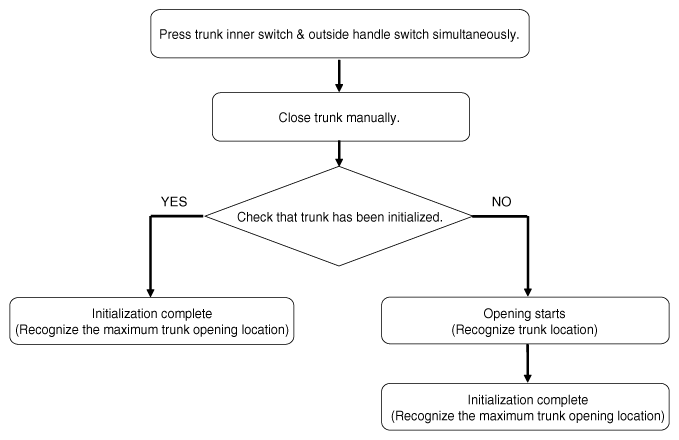

Fig 1: Power Trunk Module Initialization Procedure Chart

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If the PTM unit power has been removed or battery has been removed and installed again while the power trunk is open, initialize the trunk module at all times.
PTM system may not operate properly if the trunk module is not initialized.
