Home >> Kia >> 2016 >> Sedona L >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Motor >> Components and Components Location >> Components

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Components and Components Location: Components

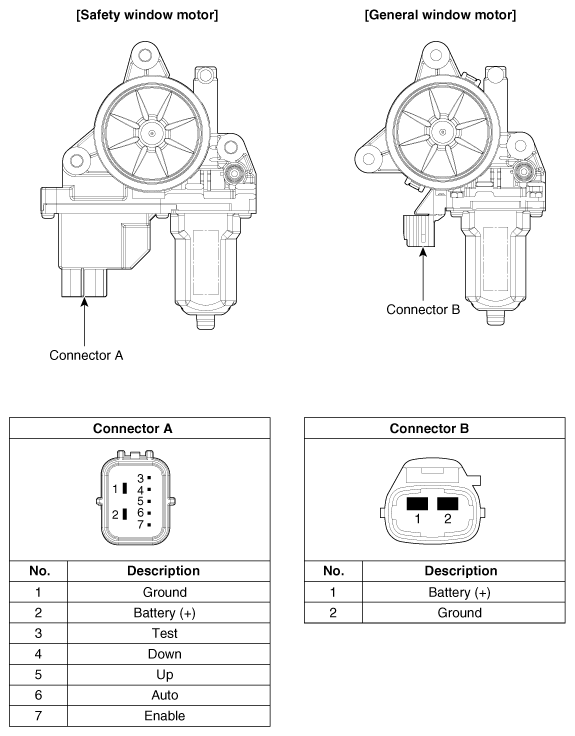

Fig 1: Locating Power Window Motor Components

G11863078

Courtesy of KIA MOTORS AMERICA, INC.
