Repair Procedures: Inspection

WARNING: This page is about a different car, the 2016 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the LHS trunk trim after opening the trunk.

    (Proceed to Body - "TRUNK TRIM ".)

  3. Remove motor connector from wiring harness.
  4. Connect the motor terminals directly to battery voltage (12V) to check that the motor operates smoothly. Then, reverse the polarity and check for smooth operation. Replace the motor if the operation is abnormal.
Fig 1: Removing Motor Connector From Wiring Harness
G11803848Courtesy of KIA MOTORS AMERICA, INC.

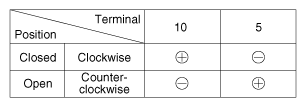

Fig 2: Motor Connector Terminals Position Chart
G11803849Courtesy of KIA MOTORS AMERICA, INC.
