GDS Data Analysis

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

Connect GDS.
IG "ON" and engine "OFF".
Select "Diagnostic Trouble Codes (DTC)" mode.
After erase DTC, keep the vehicle condition within the "Enable Conditions" (Refer to "DTC Detecting Condition" table).

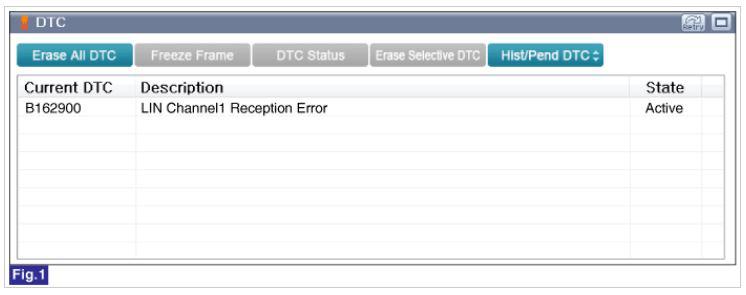

Fig 1: Screen Display - LIN Channel 1 Reception Error - Active State
Courtesy of KIA MOTOR AMERICA, INC.
Does the same DTC return?
YES
- Go to next procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or BCM's connector. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
