Variant Coding (In Case Hecu Is Replaced With New One)

Ignition switch "OFF"
Connect GDS to Data Link Connector (DLC).
Ignition switch "ON"
Select "Vehicle S/W Management" on GDS.
Perform "Variant Coding" in "Vehicle S/W Management" with GDS.
* Before performing the variant coding function, ESP coding code is required from GSW site.

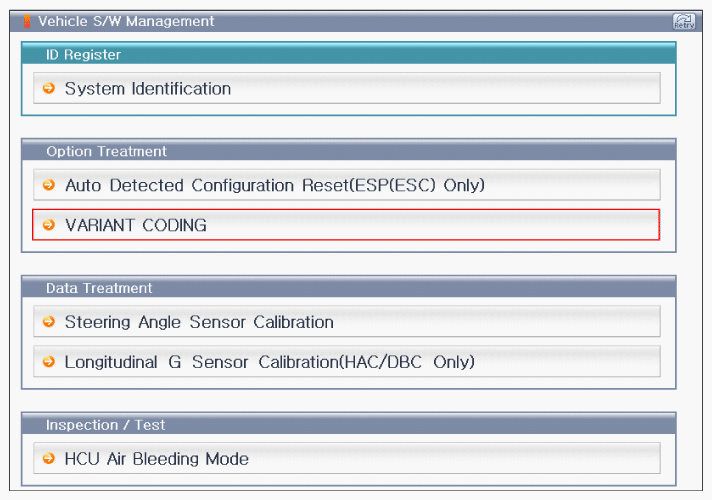

Fig 1: Screen Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

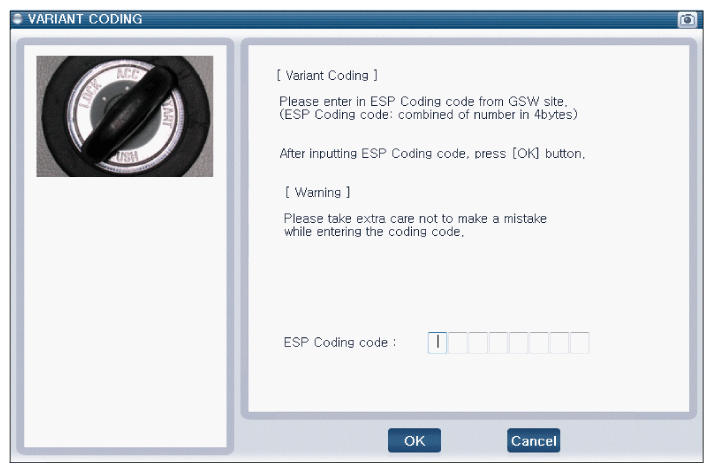

Fig 2: Screen Display - Variant Coding
Courtesy of KIA MOTORS AMERICA, INC.
