Components And Components Location: Components
WARNING:
This page is about a different car, the 2016 Kia Forte5, 2016 Kia Forte Koup, and 2016 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

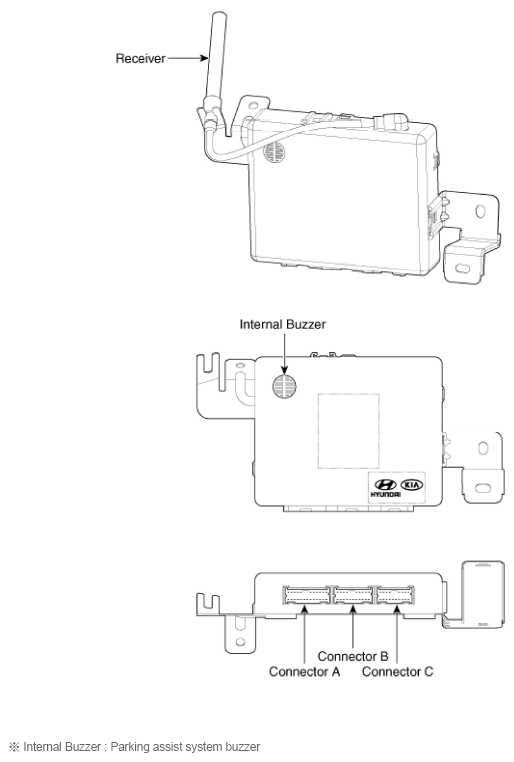

Fig 1: Body Control Module Components Location
Courtesy of KIA MOTORS AMERICA, INC.

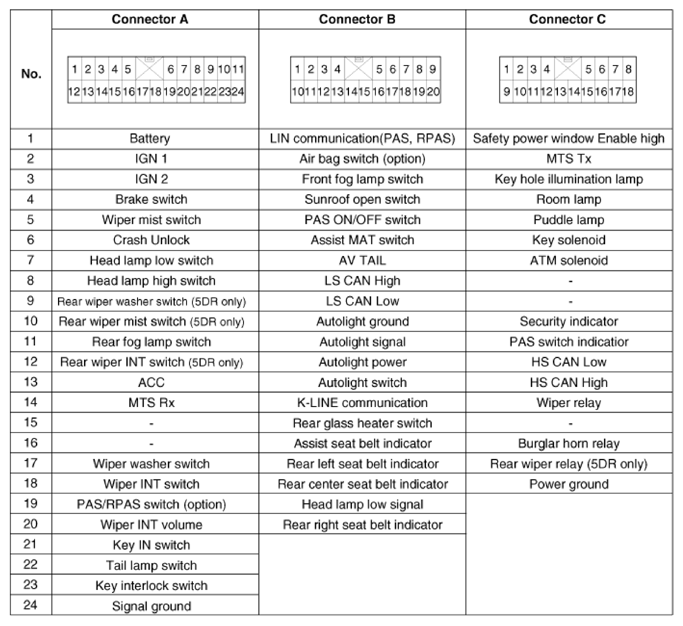

Fig 2: BCM Connector Terminals Chart
Courtesy of KIA MOTORS AMERICA, INC.
