BCM Diagnosis With GDS

WARNING: This page is about a different car, the 2016 Kia Forte5, 2016 Kia Forte Koup, and 2016 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locate GDS

Courtesy of KIA MOTORS AMERICA, INC.

The body control module can diagnose by using the GDS more quickly.
The BCM communicates with the GDS and then reads the input/output value and drives the actuator.
To diagnose the BCM function, select the menu of model and body control module.
Select "Input/output monitoring", if you will check current data of body network system. It provides input/output status of each module.
- BCM service data, CLU service data, SJB service data
If you will check each module data operation forcefully, select "Actuation test".

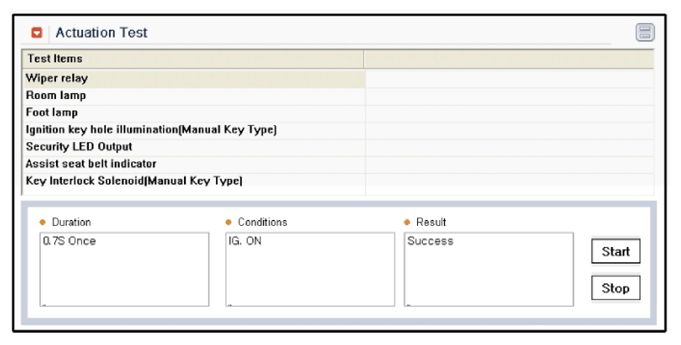

Fig 2: Display - Actuation Test Screen
Courtesy of KIA MOTORS AMERICA, INC.
If you want to change user option, select "user option".

Fig 3: Display - ID Register Screen
Courtesy of KIA MOTORS AMERICA, INC.

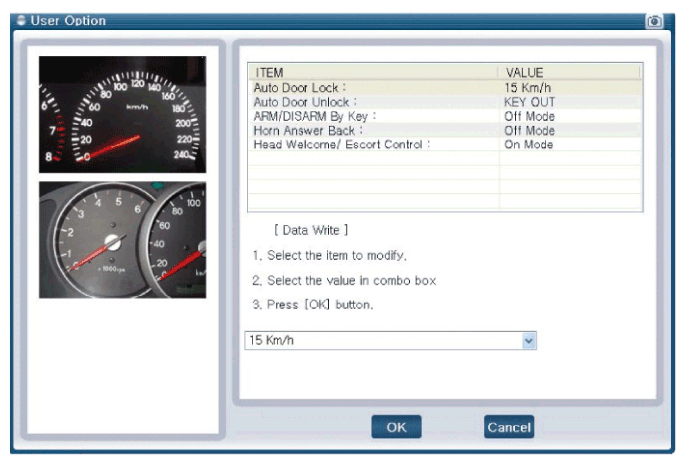

Fig 4: Display - User Option Screen
Courtesy of KIA MOTORS AMERICA, INC.
