Repair Procedures: Removal

WARNING: This page is about a different car, the 2016 Kia Forte5, 2016 Kia Forte Koup, and 2016 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the heater & A/C control unit.
(Refer to Heating, Ventilation, Air Conditioning - "HEATER & A/C CONTROLLER UNIT (MANUAL) )

(Refer to Heating, Ventilation, Air Conditioning - "HEATER & A/C CONTROLLER UNIT (DATC)
Remove the floor console assembly.
Remove the center lower cover (A) after loosening the screws.

Fig 1: Remove Center Lower Cover Screws
Courtesy of KIA MOTORS AMERICA, INC.

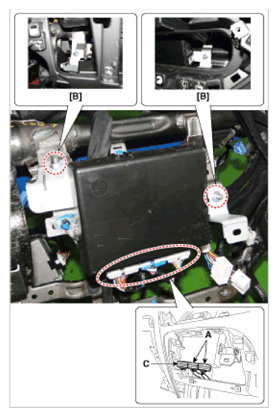

Remove the BCM unit. (in the order as shown below)
1. Disconnect the connectors (A) from the BCM unit.
2. Loosen the mounting nuts (B).
3. Remove the BCM unit (D) after disconnecting the connector (C) from the BCM unit.
Fig 2: Remove BCM Unit
Courtesy of KIA MOTORS AMERICA, INC.
